0022122144
Molex
Molex
CONN HEADER R/A 14POS 2.54MM
$3.63
Available to order
Reference Price (USD)
1+
$2.85000
10+
$2.73700
100+
$2.28100
500+
$1.93886
1,000+
$1.65373
5,000+
$1.48265
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022122144 Molex Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.264" (6.70mm)
- Contact Length - Post: 0.141" (3.58mm)
- Overall Contact Length: -
- Insulation Height: 0.250" (6.35mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
0026485123
Molex
0022286035
Preci-Dip

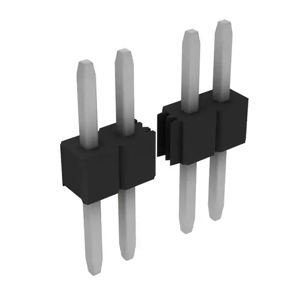

890-80-020-10-004101
Samtec Inc.
TMM-116-05-S-S
Sullins Connector Solutions

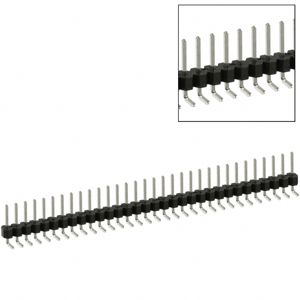

PEC32SBAN
Samtec Inc.
TSW-128-17-L-S
Samtec Inc.

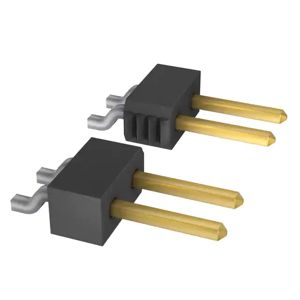

TSM-107-01-S-SH-P
