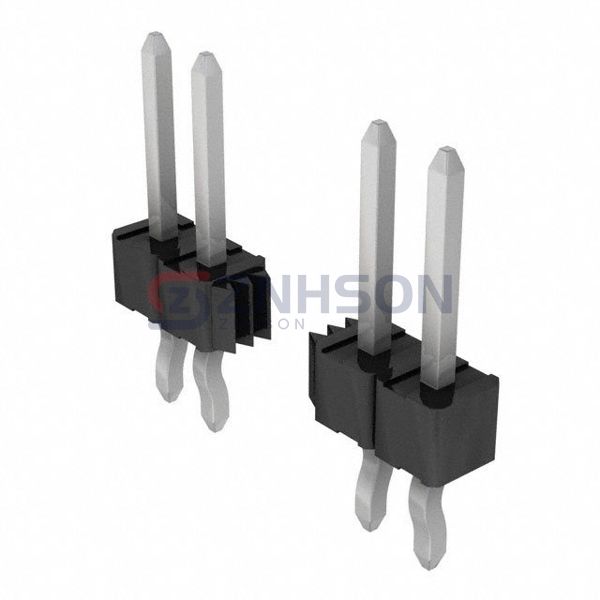

0022285050
Molex
Molex
CONN HEADER VERT 5POS 2.54MM
$0.34
Available to order
Reference Price (USD)
1+
$0.27000
10+
$0.25600
100+
$0.17930
500+
$0.15372
1,000+
$0.12810
5,000+
$0.10980
10,000+
$0.10248
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022285050 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: 0.465" (11.81mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TMS-144-60-G-S
Preci-Dip
350-80-149-00-206101
Sullins Connector Solutions
PEC32DBBN
Preci-Dip
450-80-242-00-001101
Samtec Inc.
TSM-113-01-L-DH-P-TR
JST Sales America Inc.
B8P-VH(LF)(SN)
Molex
1510482202
Samtec Inc.

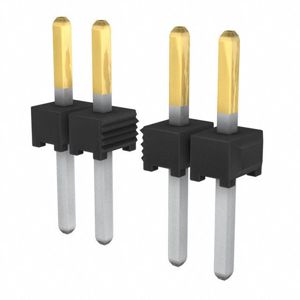

TMM-105-04-S-S
Preci-Dip

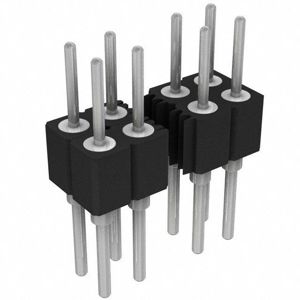

832-80-078-10-001101
