0026484111
Molex
Molex
CONN HEADER VERT 11POS 3.96MM
$0.99
Available to order
Reference Price (USD)
800+
$1.05638
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0026484111 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 11
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.830" (21.08mm)
- Contact Length - Post: 0.172" (4.37mm)
- Overall Contact Length: 1.130" (28.70mm)
- Insulation Height: 0.128" (3.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Preci-Dip
892-18-070-10-001101
Samtec Inc.
TSM-112-01-LM-DV-A
Amphenol ICC (FCI)
77311-804-03LF
Amphenol ICC (FCI)
68739-440HLF
Samtec Inc.
TSW-104-09-G-S
Molex
0015477740
Sullins Connector Solutions
PEC16DBBN
Molex
0022032166

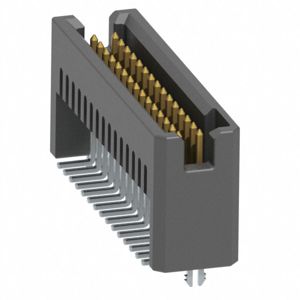

Samtec Inc.
