0026488247
Molex
Molex

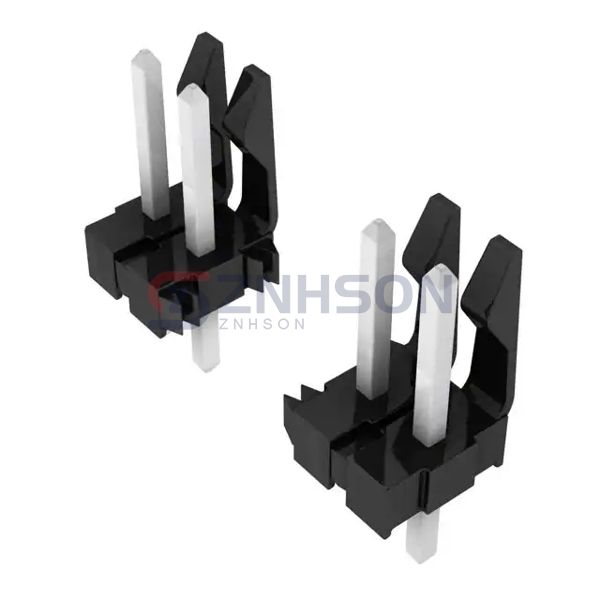

CONN HEADER VERT 24POS 3.96MM
$2.78
Available to order
Reference Price (USD)
1+
$2.62000
10+
$2.51800
100+
$2.09860
500+
$1.78382
1,000+
$1.52149
5,000+
$1.36409
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0026488247 Molex Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Molex difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 24
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.448" (11.38mm)
- Contact Length - Post: 0.454" (11.53mm)
- Overall Contact Length: 1.030" (26.16mm)
- Insulation Height: 0.500" (12.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
