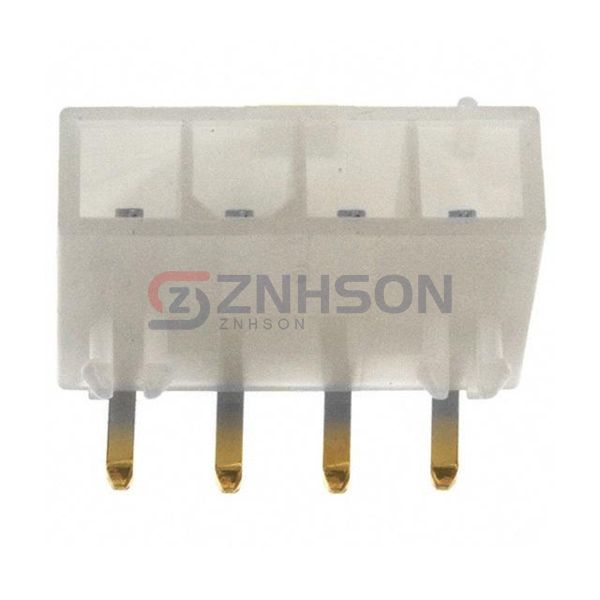

0039303047
Molex
Molex
CONN HEADER R/A 4POS 4.2MM
$2.39
Available to order
Reference Price (USD)
1+
$1.88000
10+
$1.70200
100+
$1.45870
500+
$1.21556
1,000+
$1.04190
5,000+
$0.92382
10,000+
$0.90298
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0039303047 Molex Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.213" (5.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
FTS-115-04-S-DV-A-P-TR
Amphenol ICC (FCI)
10056844-126ALF
Samtec Inc.
TSM-110-01-F-DV-004-P-TR
Samtec Inc.
TSM-111-02-S-DH-A-P
HARTING
09185506321
Samtec Inc.
TMM-113-02-L-S
Samtec Inc.
FTSH-140-04-F-MT
Samtec Inc.

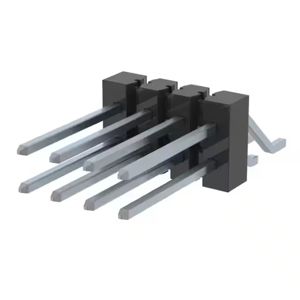

TSM-104-03-T-DH-P-TR
