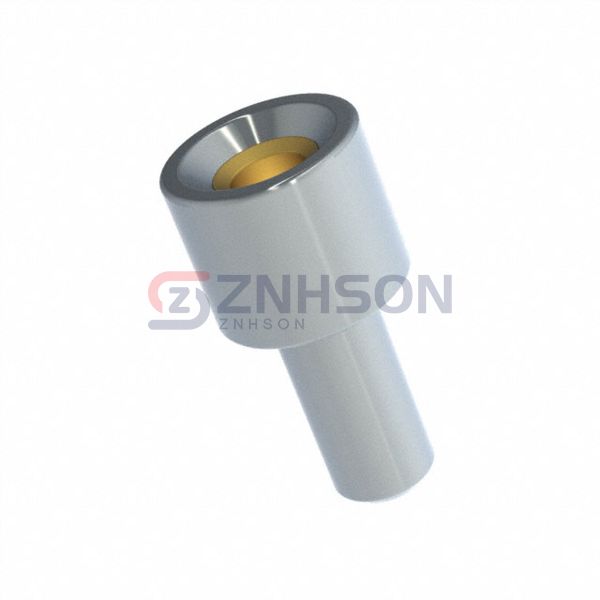

0284-0-15-01-16-27-10-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN PIN RCPT .022-.034 SOLDER
$0.80
Available to order
Reference Price (USD)
1,000+
$0.74080
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Rely on 0284-0-15-01-16-27-10-0 from Mill-Max Manufacturing Corp. for premium Connectors, Interconnects. Our Terminals - PC Pin Receptacles, Socket Connectors are designed to meet the highest industry standards. Features include gold-plated terminals, polarized housings, and easy assembly. Perfect for automotive, aerospace, and consumer electronics. Request more information or a sample today to see the difference for yourself.
Specifications
- Product Status: Active
- Tail Type: No Tail
- Termination: Solder
- Length - Overall: 0.250" (6.35mm)
- Accepts Pin Diameter: 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
- Accepts Square Pin Size: 0.025" (0.64mm)
- Pin Hole Diameter: 0.051" (1.30mm)
- Mounting Hole Diameter: 0.070" (1.78mm)
- Flange Diameter: 0.125" (3.18mm)
- Tail Diameter: -
- Socket Depth: 0.210" (5.33mm)
- Contact Material: Beryllium Copper
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
