0428202233
Molex
Molex

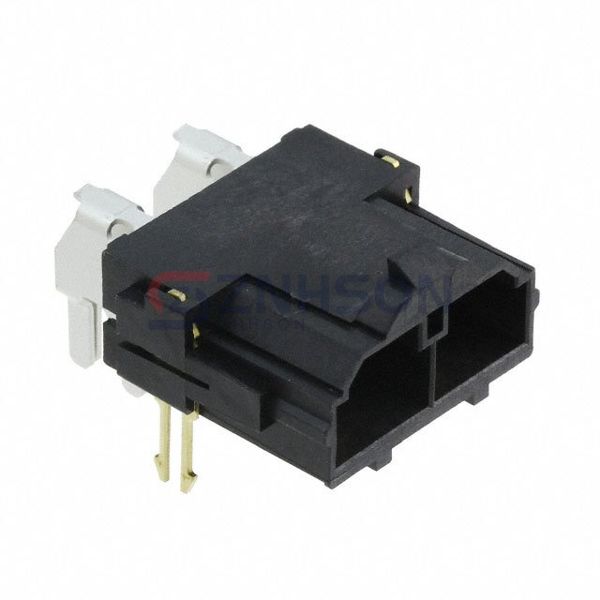

CONN HEADER R/A 2POS 10MM
$7.37
Available to order
Reference Price (USD)
1+
$6.03000
10+
$5.78700
460+
$4.21943
920+
$3.73721
1,380+
$3.49609
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0428202233 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.394" (10.00mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.201" (5.11mm)
- Overall Contact Length: -
- Insulation Height: 0.421" (10.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Zirconium Alloy
- Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
- Features: Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
