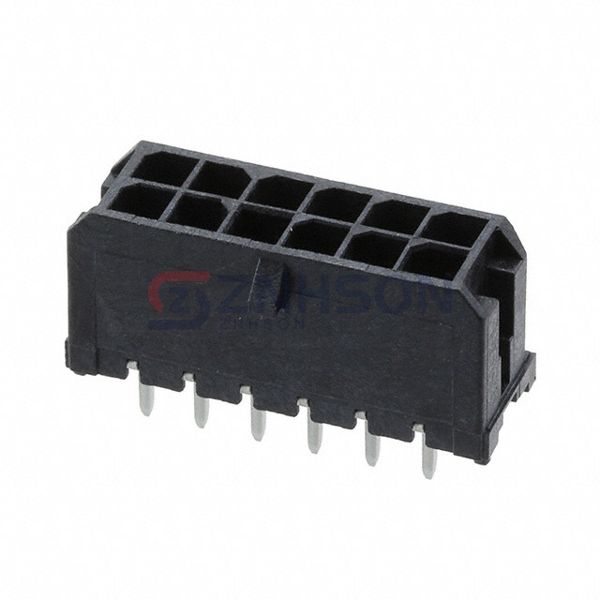

0430451229
Molex
Molex
CONN HEADER VERT 12POS 3MM
$4.97
Available to order
Reference Price (USD)
1+
$3.91000
10+
$3.75000
25+
$3.43760
50+
$3.28120
100+
$3.12500
250+
$2.73436
500+
$2.65626
1,008+
$2.26563
3,024+
$2.10938
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0430451229 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
Related Products
Hirose Electric Co Ltd
HIF4C-24P-3.18W
Samtec Inc.
TSM-112-02-SM-DV-A-P
TE Connectivity AMP Connectors
1-2842248-4
Molex
39-30-5049
Adam Tech
DME-04-S2-S
Molex
0022122244
Molex
0878311010
Samtec Inc.

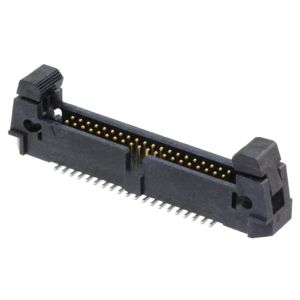

EHF-120-01-F-D-SM-P
