0430451801
Molex
Molex

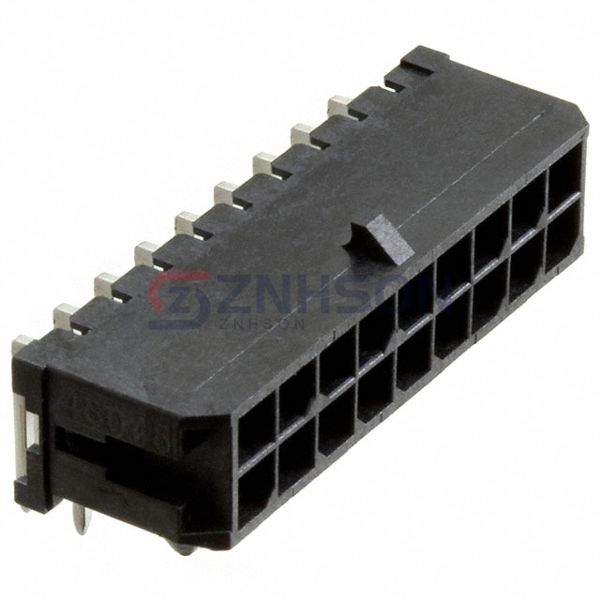

CONN HEADER R/A 18POS 3MM
$6.78
Available to order
Reference Price (USD)
1+
$5.55000
10+
$5.32600
25+
$4.88200
50+
$4.66020
100+
$4.43820
250+
$3.88344
720+
$3.77247
1,440+
$3.21769
2,880+
$2.99578
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0430451801 Molex Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.290" (7.37mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
