0530471060

Molex

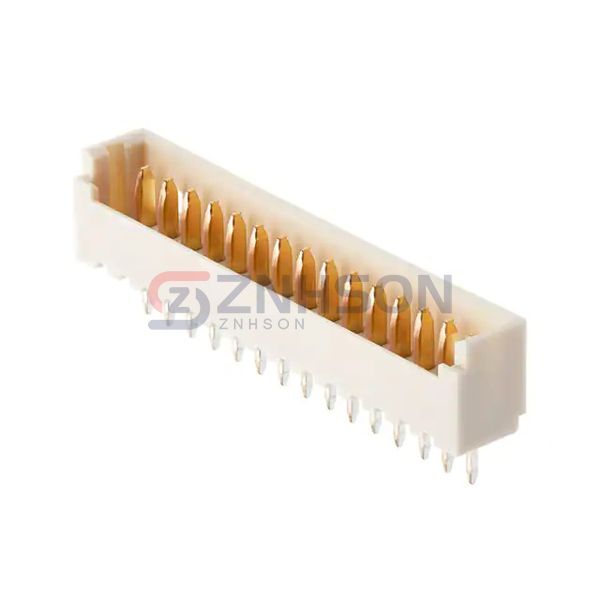

0530471060 Preview
Molex
HDR VERT 10 CIRC 1.25 DIP TH
$1.12
Available to order
Reference Price (USD)
1+
$1.12000
500+
$1.1088
1000+
$1.0976
1500+
$1.0864
2000+
$1.0752
2500+
$1.064
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Blade
  • Pitch - Mating: 0.049" (1.25mm)
  • Number of Positions: 10
  • Number of Rows: 1
  • Row Spacing - Mating: -
  • Number of Positions Loaded: All
  • Style: Board to Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Contact Length - Mating: 0.089" (2.25mm)
  • Contact Length - Post: 0.091" (2.30mm)
  • Overall Contact Length: -
  • Insulation Height: 0.165" (4.20mm)
  • Contact Shape: Rectangular
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: Flash
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Natural
  • Current Rating (Amps): Varies by Wire Gauge
  • Voltage Rating: 125VAC/DC
