0533981471
Molex
Molex

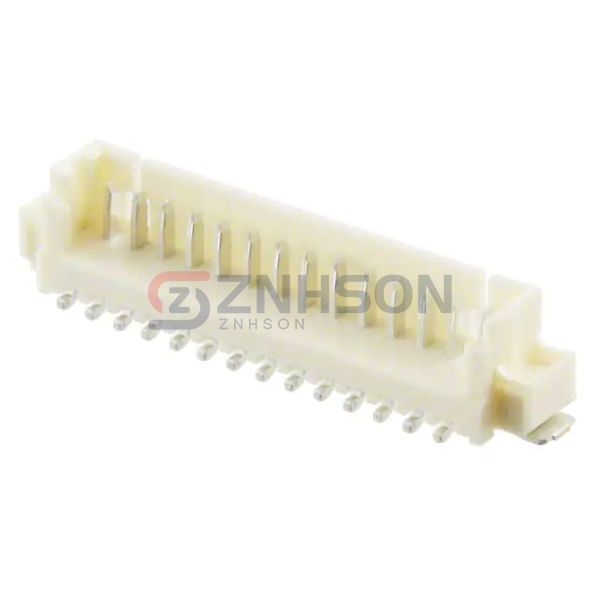

CONN HEADER SMD 14POS 1.25MM
$1.52
Available to order
Reference Price (USD)
1,000+
$0.77552
2,000+
$0.72705
3,000+
$0.70282
5,000+
$0.67858
10,000+
$0.64465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0533981471 Molex Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Molex difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 14
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.185" (4.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Solder Retention
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
