0751020089
Molex
Molex
CONN HEADER VERT 24POS 2.54MM
$19.69
Available to order
Reference Price (USD)
1+
$18.76000
10+
$17.41600
25+
$15.62960
50+
$15.18320
100+
$13.39690
250+
$12.50372
500+
$12.23580
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0751020089 Molex Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Molex for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.187" (4.75mm)
- Overall Contact Length: 0.517" (13.13mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol Sine Systems Corp
AT04-08PB-BM04
Preci-Dip
890-70-015-20-001101
Harwin Inc.
M80-5321042
Preci-Dip
852-10-024-30-002101
Samtec Inc.
TMM-108-01-LM-D-SM
Preci-Dip
451-80-234-00-003101
Molex

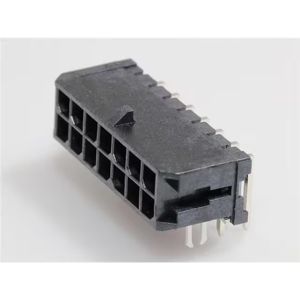

43045-1423
Samtec Inc.
TMM-107-06-LM-D-SM-P
Samtec Inc.

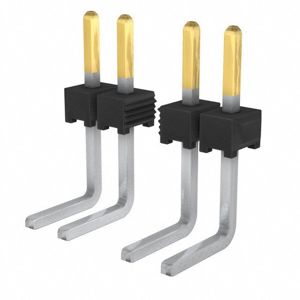

TMM-110-01-S-S-RA
