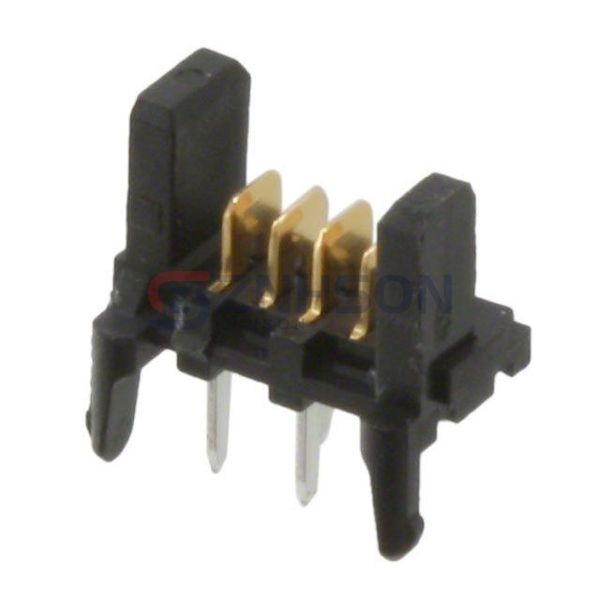

0903257004
Molex
Molex
CONN HEADER VERT 4POS 1.27MM
$0.70
Available to order
Reference Price (USD)
1+
$0.70000
500+
$0.693
1000+
$0.686
1500+
$0.679
2000+
$0.672
2500+
$0.665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0903257004 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.252" (6.40mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Palladium-Nickel
- Contact Finish Thickness - Mating: 24.0µin (0.61µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.2A
- Voltage Rating: 250V
