0908140912
Molex
Molex

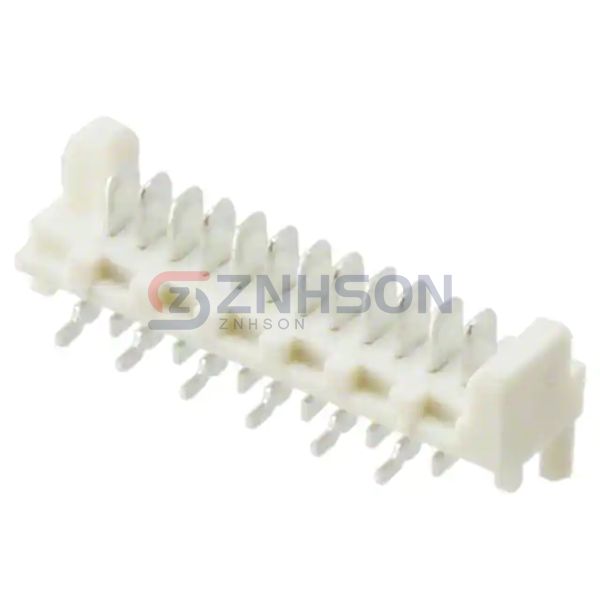

CONN HEADER SMD 12POS 1.27MM
$1.09
Available to order
Reference Price (USD)
600+
$0.58572
1,200+
$0.52064
1,800+
$0.48810
3,000+
$0.47183
6,000+
$0.45556
15,000+
$0.42302
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0908140912 Molex Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.085" (2.15mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.161" (4.10mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 118.1µin (3.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1.2A
- Voltage Rating: 250V
