09185245923
HARTING
HARTING

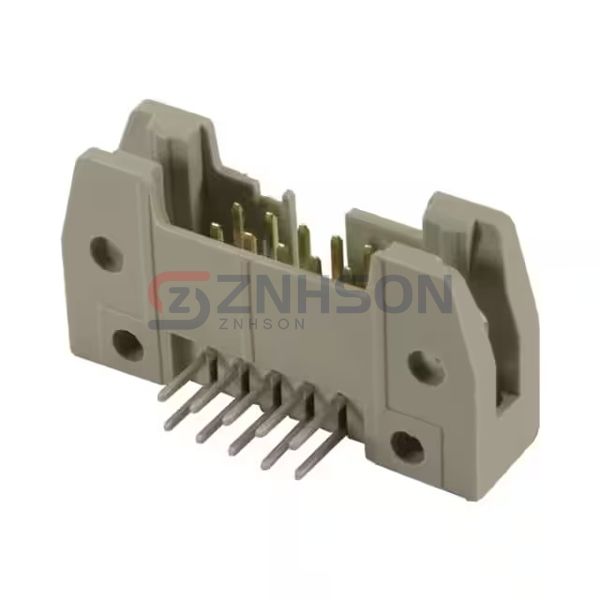

SEK/IDC ANGLED MALE, 2.9MM TAILS
$3.21
Available to order
Reference Price (USD)
1+
$3.21300
500+
$3.18087
1000+
$3.14874
1500+
$3.11661
2000+
$3.08448
2500+
$3.05235
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 09185245923 HARTING Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: -
- Insulation Height: 0.335" (8.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
