09185407924
HARTING
HARTING
CONN HEADER VERT 40POS 2.54MM
$4.46
Available to order
Reference Price (USD)
1+
$3.65000
10+
$3.50400
25+
$3.21200
50+
$3.06600
100+
$2.92000
250+
$2.55500
500+
$2.48200
1,000+
$2.11700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 09185407924 HARTING Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.650" (16.51mm)
- Insulation Height: 0.681" (17.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
1722861208
Samtec Inc.
TMM-107-01-LM-D-RA
Samtec Inc.
TSW-140-08-L-D-RA
Preci-Dip
800-80-058-30-001101
Samtec Inc.
ZSS-136-07-G-D-1020
JST Sales America Inc.

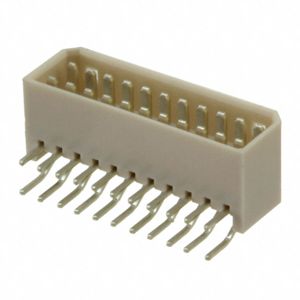

22PS-JED
Samtec Inc.
TFM-115-02-L-D
Samtec Inc.

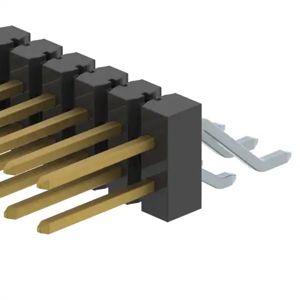

TSM-136-02-S-DH
Samtec Inc.

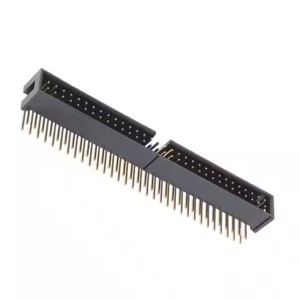

TSS-132-04-G-D-RA
