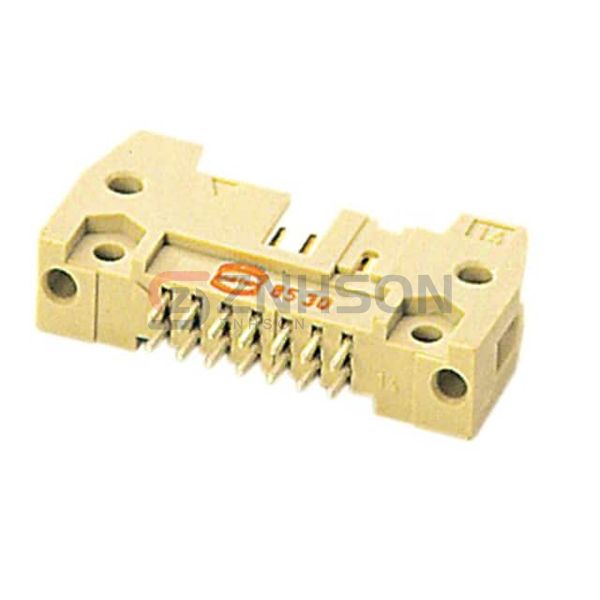

09195206914

HARTING

Manufacturer

HARTING

Description:

CONN HEADER VERT 20POS 2.54MM

Datasheet:

09195206914 Datasheet

$3.65

Available to order

Reference Price (USD)

$3.13000

10+

$3.00000

25+

$2.75000

50+

$2.62500

100+

$2.50000

250+

$2.18752

500+

$2.12500

1,000+

$1.81250

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Experience top-tier connectivity with 09195206914 HARTING Rectangular Connectors - Headers, Male Pins. These connectors offer superior signal integrity, easy assembly, and long-term reliability for diverse applications. Whether for automotive, industrial, or consumer electronics, HARTING has you covered. Interested? Reach out to us for expert advice and competitive pricing!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 20
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks, Short
Contact Length - Mating: 0.228" (5.80mm)
Contact Length - Post: 0.114" (2.90mm)
Overall Contact Length: 0.650" (16.51mm)
Insulation Height: 0.681" (17.30mm)
Contact Shape: Square
Contact Finish - Mating: -
Contact Finish Thickness - Mating: -
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: Keying Slot, Mounting Flange
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Beige
Current Rating (Amps): -
Voltage Rating: -
