09195267904

HARTING

Manufacturer

HARTING

Description:

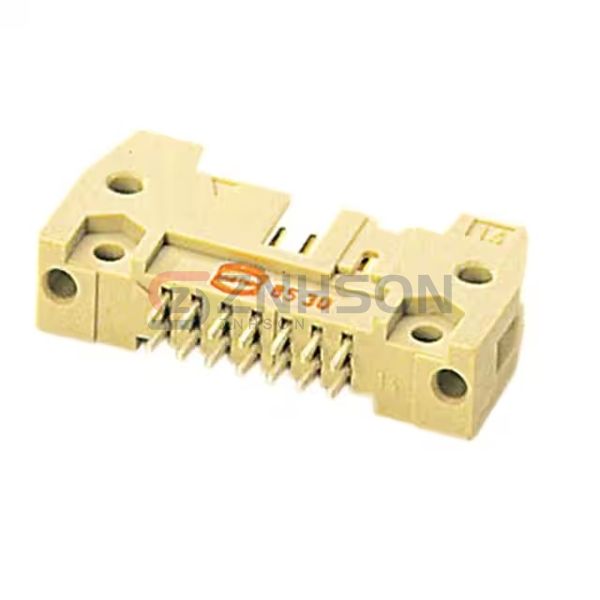

CONN HEADER VERT 26POS 2.54MM

Datasheet:

09195267904 Datasheet

$3.15

Available to order

Reference Price (USD)

100+

$2.64000

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Upgrade your electronic systems with 09195267904 HARTING Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 26
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks, Long
Contact Length - Mating: 0.228" (5.80mm)
Contact Length - Post: 0.114" (2.90mm)
Overall Contact Length: 0.650" (16.51mm)
Insulation Height: 0.681" (17.30mm)
Contact Shape: Square
Contact Finish - Mating: -
Contact Finish Thickness - Mating: -
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: Keying Slot, Mounting Flange
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Beige
Current Rating (Amps): -
Voltage Rating: -
