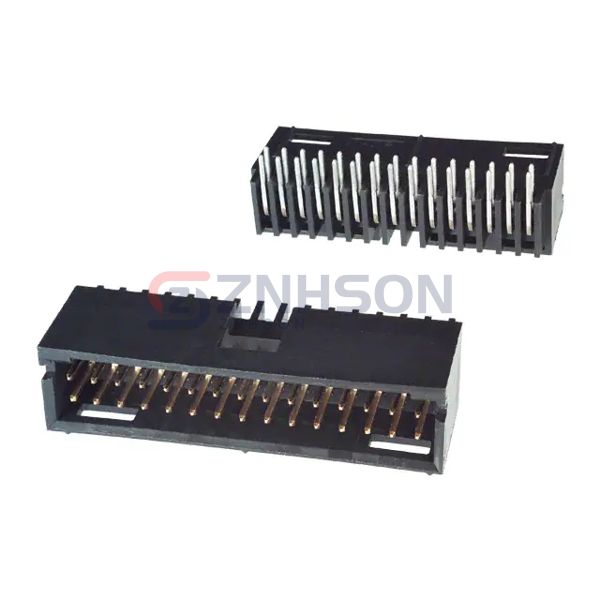

1-103166-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 30POS 2.54MM
$13.78
Available to order
Reference Price (USD)
784+
$10.88274
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-103166-3 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust TE Connectivity AMP Connectors for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: -
- Insulation Height: 0.400" (10.16mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-104-01-S-D
Samtec Inc.
FTSH-106-04-LM-DV
Samtec Inc.
TMM-110-01-SM-S-RA
Amphenol ICC (FCI)

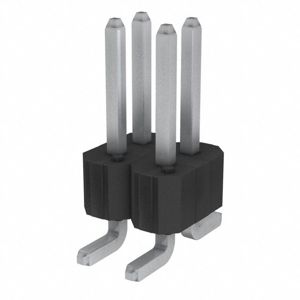

54202-T0802LF
Amphenol ICC (FCI)

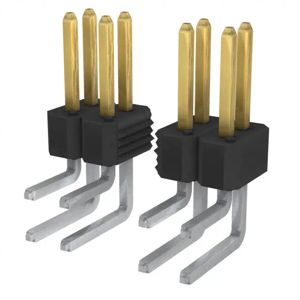

77317-804-20LF
Sullins Connector Solutions

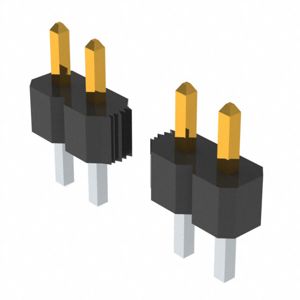

PBC36SZAN
Amphenol ICC (FCI)

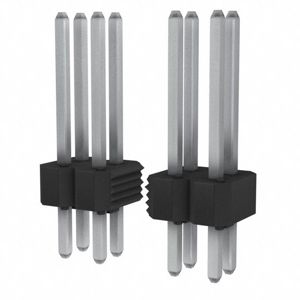

10076801-408T26LF
Samtec Inc.

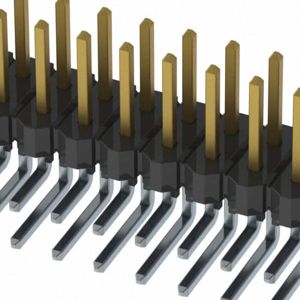

HTSW-112-08-S-D-RA
Amphenol ICC (FCI)

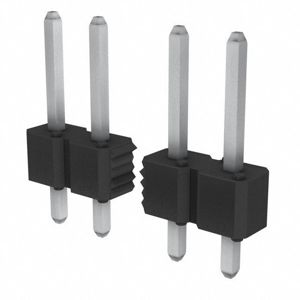

77311-401-20LF
