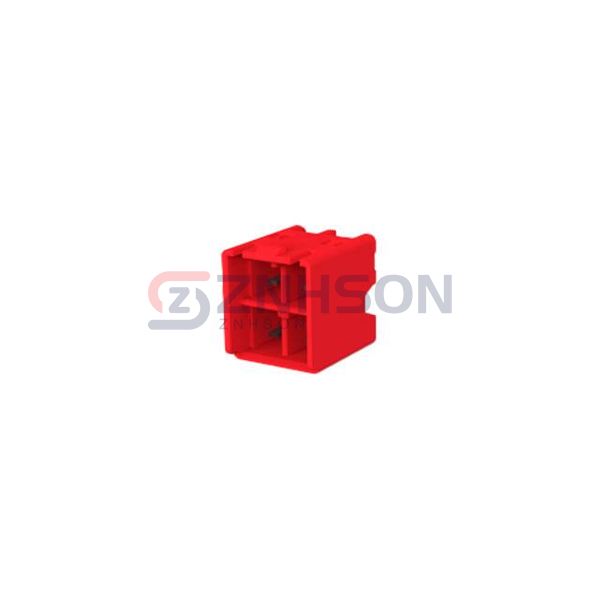

1-1376386-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 4POS 5MM
$1.56
Available to order
Reference Price (USD)
1+
$1.35000
10+
$1.19800
25+
$1.13320
50+
$1.08960
100+
$1.04600
250+
$0.95876
500+
$0.87160
1,000+
$0.78444
2,500+
$0.71907
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with 1-1376386-2 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.197" (5.00mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.244" (6.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.555" (14.10mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Red
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 300VAC
