1-2842168-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

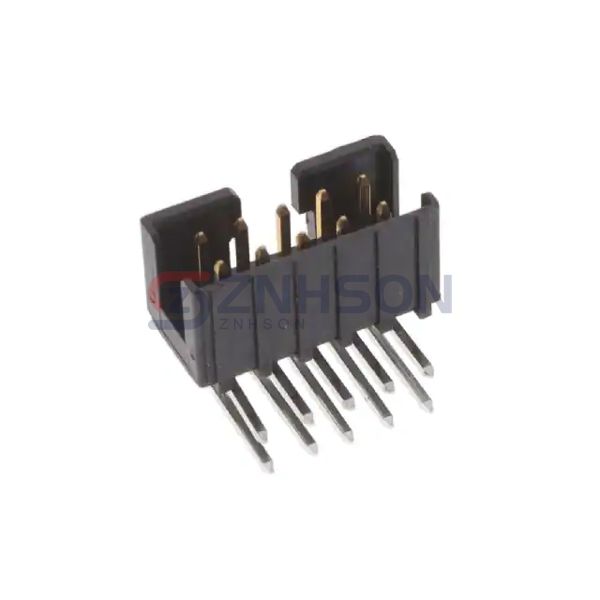

10P, AMPMODU 2MM, DOUBLE ROW SHR
$2.65
Available to order
Reference Price (USD)
1+
$2.65000
500+
$2.6235
1000+
$2.597
1500+
$2.5705
2000+
$2.544
2500+
$2.5175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 1-2842168-0 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.145" (3.70mm)
- Contact Length - Post: 0.098" (2.50mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125VAC/DC
