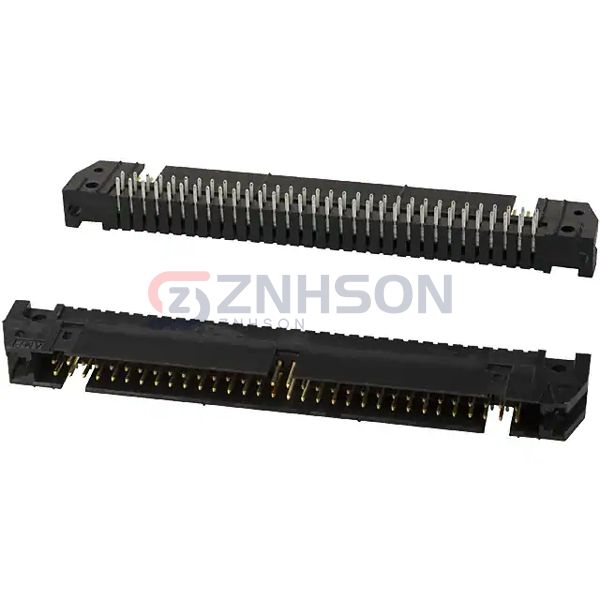

1-5102160-2

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 64
• Number of Rows: 2
• Row Spacing - Mating: 0.100" (2.54mm)
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.240" (6.10mm)
• Contact Length - Post: 0.110" (2.79mm)
• Overall Contact Length: -
• Insulation Height: 0.315" (8.00mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold or Gold-Palladium
• Contact Finish Thickness - Mating: 30.0µin (0.76µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: -
• Features: Keying Slot, Mounting Flange
• Operating Temperature: -65°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 1A per Contact
• Voltage Rating: 250VAC
