1-5102162-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

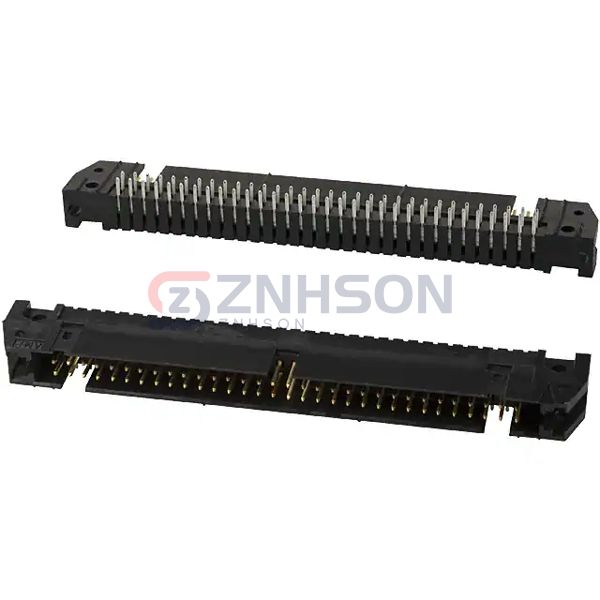

CONN HEADER R/A 64POS 2.54MM
$11.46
Available to order
Reference Price (USD)
1+
$8.26000
10+
$7.90100
100+
$6.64370
500+
$5.56638
1,000+
$4.91996
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-5102162-2 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.155" (3.94mm)
- Overall Contact Length: -
- Insulation Height: 0.315" (8.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: -
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC
