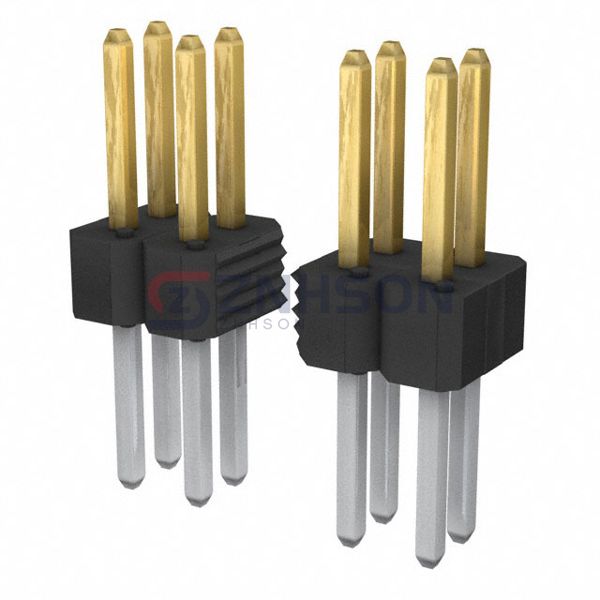

10119109-330018LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 30POS 2.54MM
$5.47
Available to order
Reference Price (USD)
1,600+
$4.76150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with 10119109-330018LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.225" (5.72mm)
- Overall Contact Length: 0.555" (14.10mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 50.0µin (1.27µm)
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: -
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-116-01-L-MT
Samtec Inc.
MMT-109-01-S-MT-K
Samtec Inc.
TMM-120-05-G-D-SM-P
Preci-Dip
890-80-027-10-002101
Samtec Inc.
BBD-117-G-D
Samtec Inc.
ZSS-105-01-G-D-500-LL
Samtec Inc.
TSM-112-02-L-DH-A-TR
Samtec Inc.

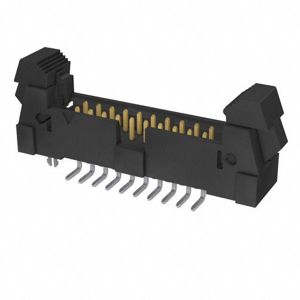

EHT-110-01-SM-D-SM-LC-P
