10125839-06RAEHLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

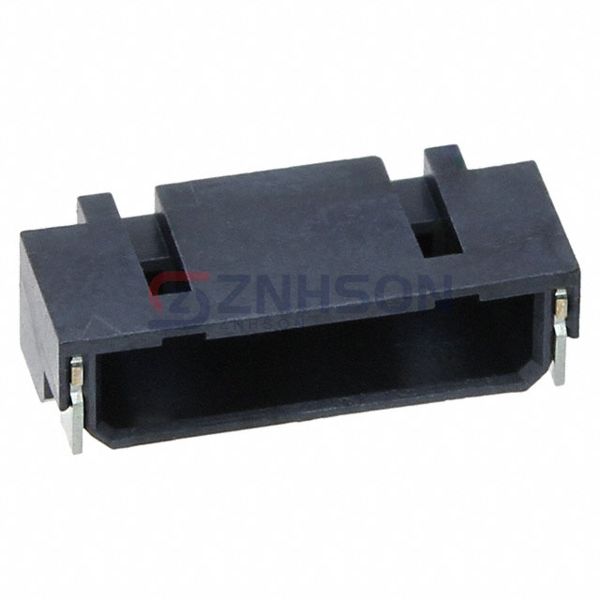

CONN HEADER SMD R/A 6POS 1.2MM
$0.54
Available to order
Reference Price (USD)
2,000+
$0.20734
4,000+
$0.19984
6,000+
$0.18735
10,000+
$0.17486
14,000+
$0.16862
50,000+
$0.16237
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 10125839-06RAEHLF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Amphenol ICC (FCI) for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Tab
- Pitch - Mating: 0.047" (1.20mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.90µin (0.099µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
- Features: Solder Retention
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
