102160-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

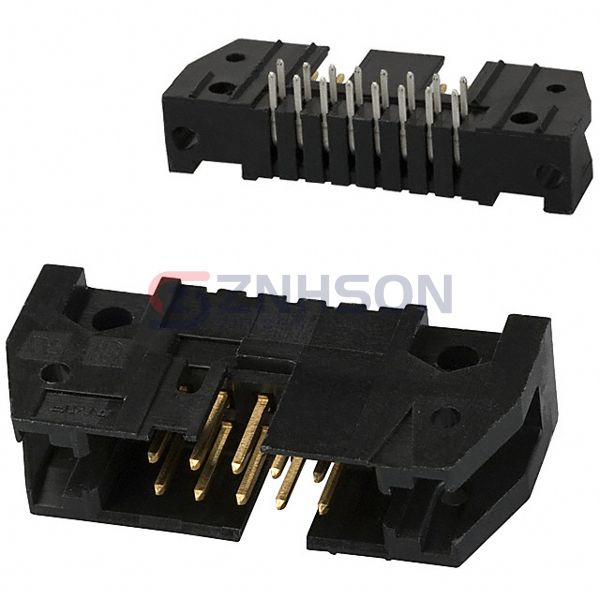

CONN HEADER R/A 16POS 2.54MM
$3.19
Available to order
Reference Price (USD)
560+
$2.22009
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with 102160-3 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.315" (8.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Brass
- Insulation Material: -
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC
