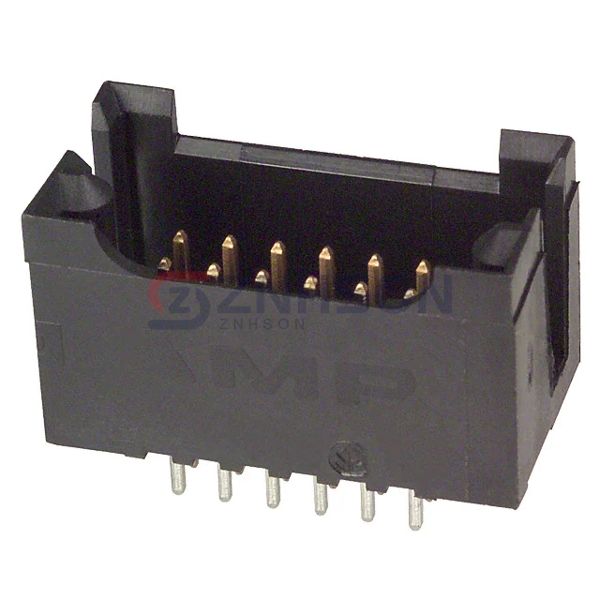

102692-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 12POS 2.54MM
$4.63
Available to order
Reference Price (USD)
1+
$3.68000
80+
$3.08700
160+
$2.94000
560+
$2.49900
1,040+
$2.13150
5,040+
$1.91100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 102692-1 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.180" (4.57mm)
- Overall Contact Length: -
- Insulation Height: 0.550" (13.97mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Glass Filled
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 250VAC
