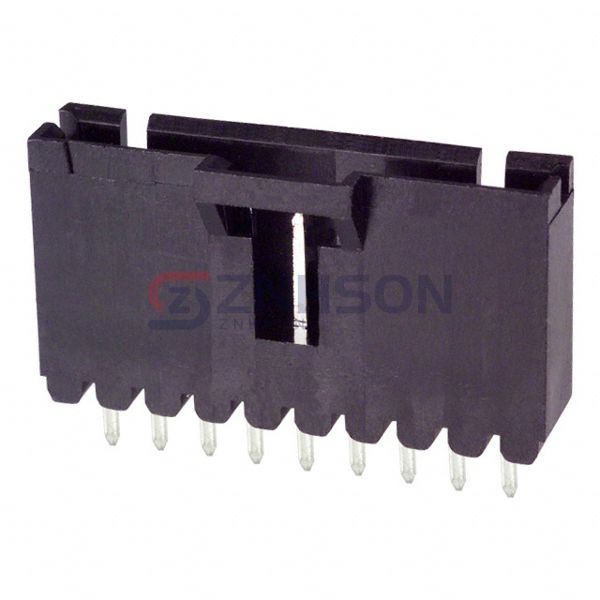

103639-8
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 9POS 2.54MM
$2.68
Available to order
Reference Price (USD)
1+
$2.07000
22+
$1.88000
110+
$1.61155
506+
$1.34292
1,012+
$1.15109
5,016+
$1.02063
10,010+
$0.99761
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 103639-8 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust TE Connectivity AMP Connectors for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.545" (13.84mm)
- Insulation Height: 0.535" (13.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0022289120
Würth Elektronik
690357281676
Samtec Inc.
TMM-112-01-L-S-RA
Samtec Inc.
TMM-128-01-L-D-RA
Samtec Inc.
FTSH-134-01-L-DH-A
Preci-Dip

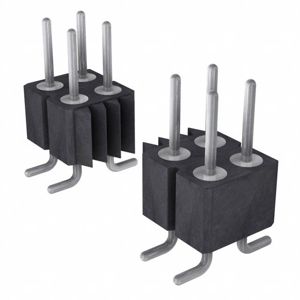

832-80-026-30-001101
Preci-Dip

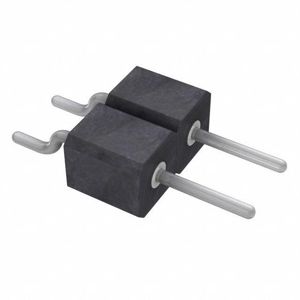

800-80-002-40-001101
Mill-Max Manufacturing Corp.
349-10-128-00-560000
Sullins Connector Solutions

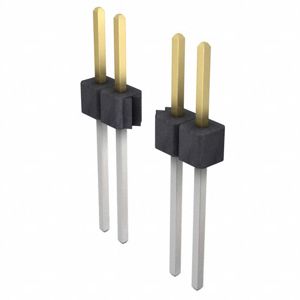

PBC25SAEN
