109L
Hammond Manufacturing
Hammond Manufacturing

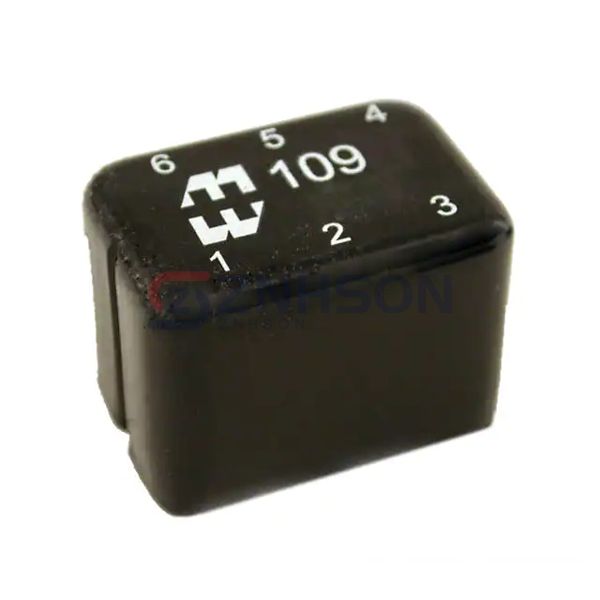

TRANSFORMER AUDIO 10KCT/3.2
$37.28
Available to order
Reference Price (USD)
1+
$30.99000
10+
$27.34500
25+
$26.43360
50+
$23.69900
100+
$22.78750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your audio systems with Hammond Manufacturing 109L Audio Transformers, engineered for superior sound quality and durability. Ideal for amplifiers, mixers, and other audio devices, these transformers ensure minimal distortion and maximum efficiency. Trust Hammond Manufacturing for top-tier components that meet your audio needs. Request a quote now and experience the difference in your sound applications.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 55.3:1
- Impedance - Primary (Ohms): 10kCT
- Impedance - Secondary (Ohms): 3.2CT
- DC Resistance (DCR) - Primary: 300Ohm
- DC Resistance (DCR) - Secondary: 200mOhm
- Transformer Type: Miniature Epoxy Potted
- Frequency Range: 300Hz ~ 50kHz
- Frequency Response: ±1.5dB
- Voltage - Isolation: 100VRMS
- Insertion Loss: -
- Return Loss: -
- Power Level: 2W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 1.315" L x 0.930" W (33.40mm x 23.62mm)
- Height - Seated (Max): 0.920" (23.37mm)
- Termination Style: PC Pin
