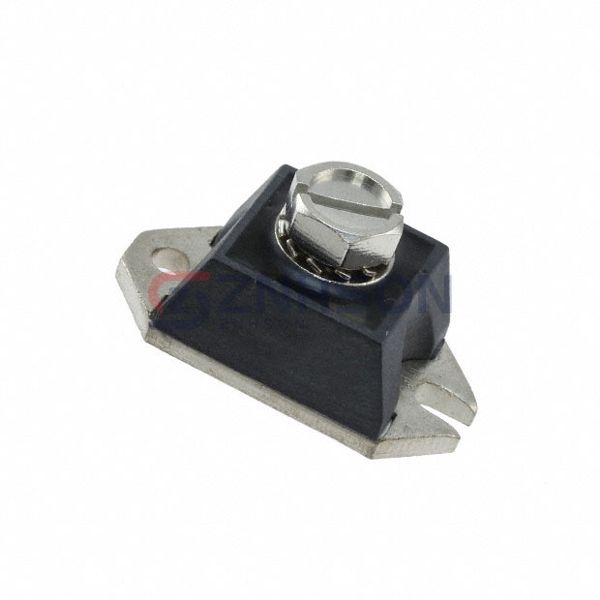

120NQ045R-1
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY 45V 120A PRM1-1
$26.74
Available to order
Reference Price (USD)
594+
$27.60394
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic designs with 120NQ045R-1 Single Rectifier Diodes by SMC Diode Solutions, offering unparalleled efficiency and durability. Ideal for power supplies, inverters, and DC-DC converters, these diodes feature ultra-low leakage and high junction temperature tolerance. Their robust design ensures stable performance in extreme conditions. Whether for prototyping or mass production, SMC Diode Solutions has you covered. Request a quote or technical support today!
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45 V
- Current - Average Rectified (Io): 120A
- Voltage - Forward (Vf) (Max) @ If: 610 mV @ 120 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 10 mA @ 45 V
- Capacitance @ Vr, F: 5200pF @ 5V, 1MHz
- Mounting Type: Chassis Mount
- Package / Case: HALF-PAK
- Supplier Device Package: PRM1-1 (Half Pak Module)
- Operating Temperature - Junction: -55°C ~ 150°C
