124B
Hammond Manufacturing
Hammond Manufacturing

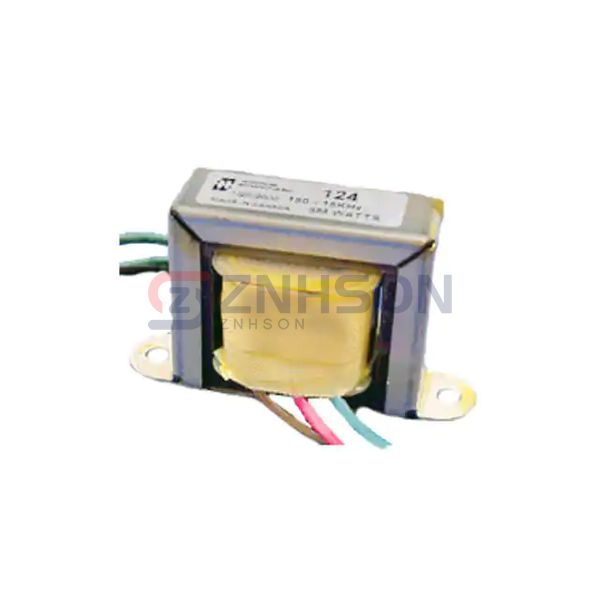

TRANSFORMER AUDIO 10/90KCT IMP
$58.72
Available to order
Reference Price (USD)
1+
$48.26000
10+
$46.64700
25+
$43.42960
50+
$40.21260
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Hammond Manufacturing 124B Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:3
- Impedance - Primary (Ohms): 10k
- Impedance - Secondary (Ohms): 90kCT
- DC Resistance (DCR) - Primary: 405Ohm
- DC Resistance (DCR) - Secondary: 1.525kOhm
- Transformer Type: Tube Driver and Speaker Matching
- Frequency Range: 150Hz ~ 15kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 500Vrms
- Insertion Loss: -
- Return Loss: -
- Power Level: 5W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 2.380" L x 1.350" W (60.45mm x 34.29mm)
- Height - Seated (Max): 1.430" (36.32mm)
- Termination Style: Wire Leads
