1503-1
Keystone Electronics
Keystone Electronics

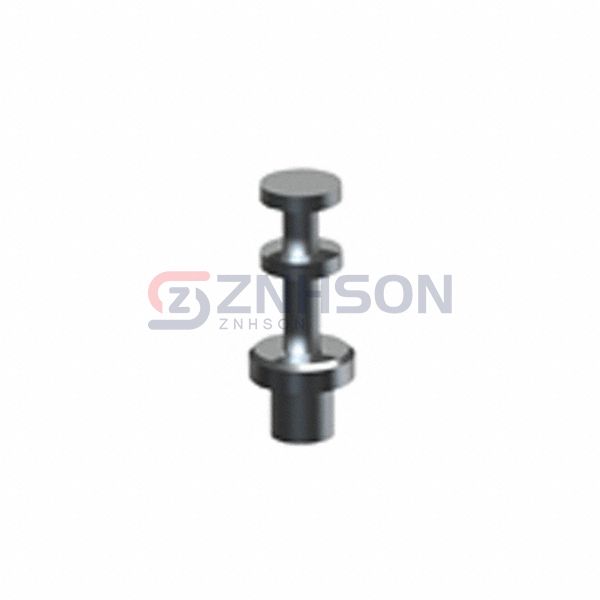

TERM TURRET SINGLE L=9.14MM TIN
$0.58
Available to order
Reference Price (USD)
100+
$0.57980
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality 1503-1 Turret Connectors from Keystone Electronics, designed for reliable electrical connections in various applications. These terminals feature durable construction, excellent conductivity, and easy installation, making them ideal for PCB and industrial uses. Whether you need secure connections for power distribution or signal transmission, our Turret Connectors deliver consistent performance. Contact us today for a quote and let us help you find the perfect solution for your needs.
Specifications
- Product Status: Active
- Terminal Type: Single End
- Number of Turrets: Double
- Length - Above Board: 0.360" (9.14mm)
- Length - Below Flange: 0.078" (1.98mm)
- Length - Overall: 0.438" (11.13mm)
- Mounting Type: Through Hole
- Termination: Staking Flare
- Flange Diameter: 0.187" (4.75mm)
- Diameter - Turret Head: 0.145" (3.68mm)
- Staking Side OD: 0.112" (2.84mm)
- Staking Side ID: -
- Mounting Hole Diameter: 0.116" (2.95mm)
- Board Thickness: 0.032" (0.81mm)
- Contact Material: Brass
- Contact Finish: Tin
- Contact Finish Thickness: -
- Insulation: Non-Insulated
