1503-3
Keystone Electronics
Keystone Electronics

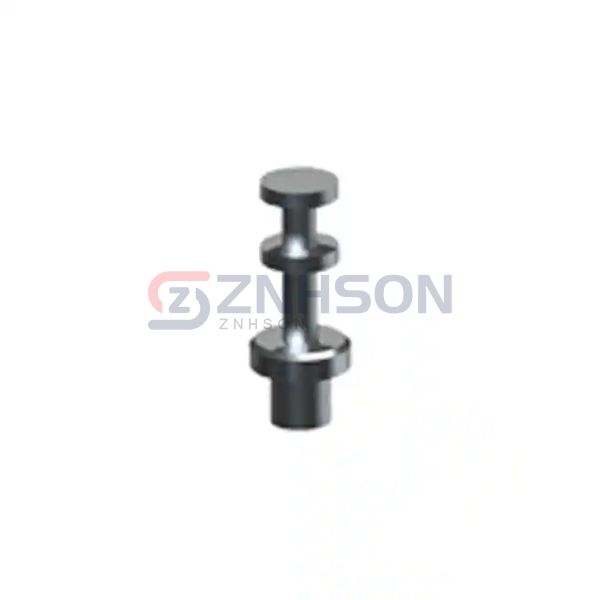

TERM TURRET SINGLE L=9.14MM TIN
$0.73
Available to order
Reference Price (USD)
1+
$0.61000
10+
$0.56800
50+
$0.45460
250+
$0.39776
1,000+
$0.31820
2,500+
$0.28410
5,000+
$0.27463
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electrical projects with Keystone Electronics's 1503-3 Turret Connectors, offering exceptional quality and ease of use. These terminals feature a sturdy build and excellent solderability, making them a top choice for engineers. Suitable for automotive, industrial, and consumer applications. Get your hands on these premium connectors send us an inquiry now.
Specifications
- Product Status: Active
- Terminal Type: Single End
- Number of Turrets: Double
- Length - Above Board: 0.360" (9.14mm)
- Length - Below Flange: 0.141" (3.58mm)
- Length - Overall: 0.501" (12.73mm)
- Mounting Type: Through Hole
- Termination: Staking Flare
- Flange Diameter: 0.187" (4.75mm)
- Diameter - Turret Head: 0.145" (3.68mm)
- Staking Side OD: 0.112" (2.84mm)
- Staking Side ID: -
- Mounting Hole Diameter: 0.116" (2.95mm)
- Board Thickness: 0.093" (2.36mm)
- Contact Material: Brass
- Contact Finish: Tin
- Contact Finish Thickness: -
- Insulation: Non-Insulated
