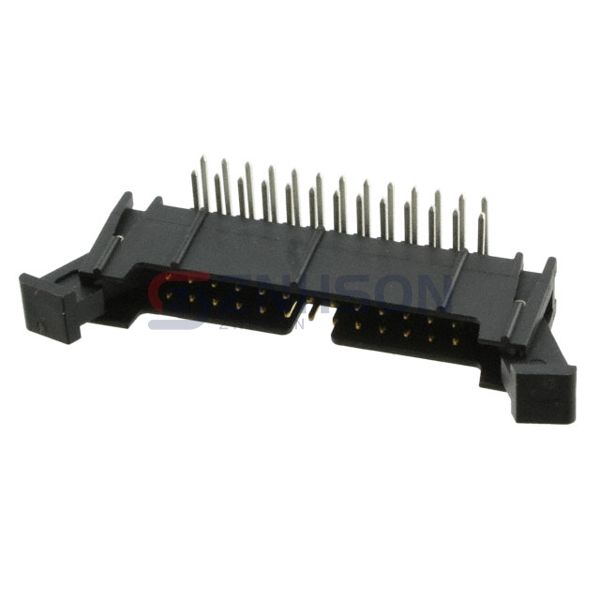

155226-5202-RB
3M
3M
CONN HEADER R/A 26POS 2MM
$6.42
Available to order
Reference Price (USD)
980+
$5.22000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 155226-5202-RB 3M Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.112" (2.84mm)
- Overall Contact Length: -
- Insulation Height: 0.247" (6.28mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.25A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
54202-S0806ALF
Amphenol ICC (FCI)
77313-487-14LF
Samtec Inc.
ZSS-120-02-S-D-585
3M
929834-03-29
Sullins Connector Solutions
SBH31-NBPB-D07-SP-BK
Samtec Inc.
TMM-105-01-G-S-SM-P-TR

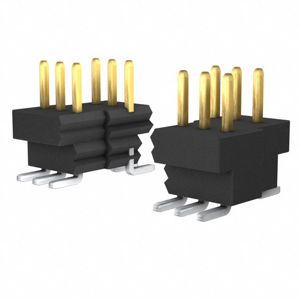

Samtec Inc.
BKT-133-03-F-V

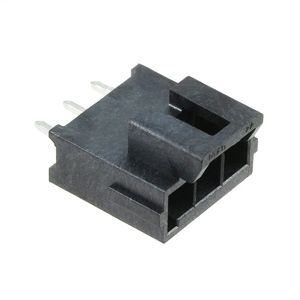

Molex
