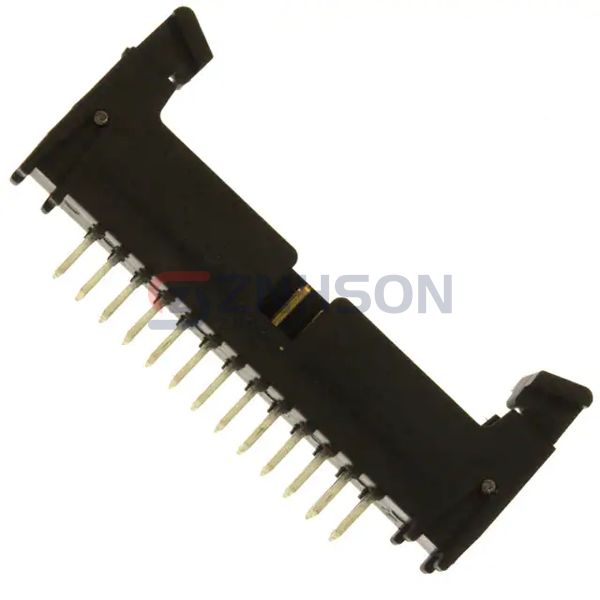

155226-6302-RB
3M
3M
CONN HEADER VERT 26POS 2MM
$9.77
Available to order
Reference Price (USD)
1+
$7.83000
10+
$7.50700
100+
$6.20160
500+
$5.22240
1,000+
$4.56960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 155226-6302-RB 3M Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.112" (2.84mm)
- Overall Contact Length: -
- Insulation Height: 0.425" (10.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.25A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-126-26-G-S

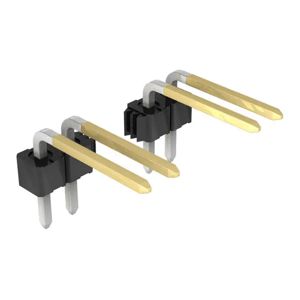

Molex
0022286365

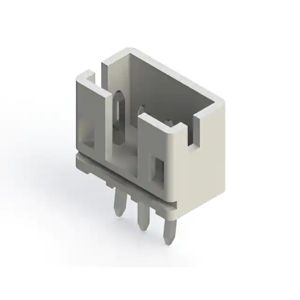

EDAC Inc.
140-503-415-001

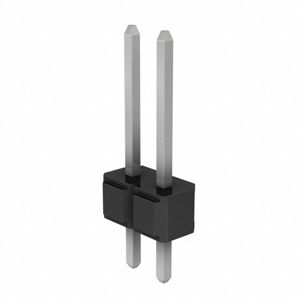

3M
929700-01-01

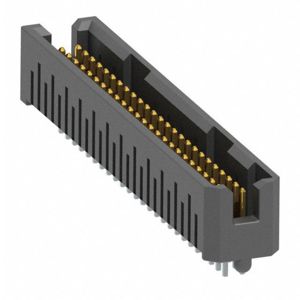

Samtec Inc.
TFML-125-02-S-D-A

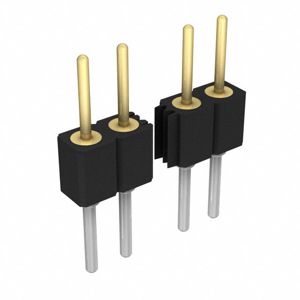

Preci-Dip
350-V3-123-00-006101

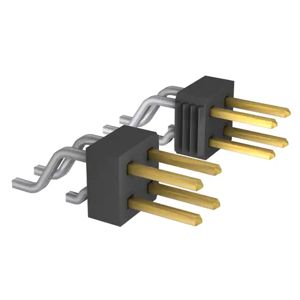

Samtec Inc.
TSM-114-01-S-DH-P

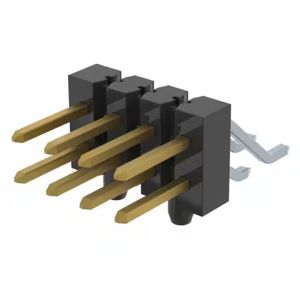

Samtec Inc.
TSM-104-01-F-DH-A-K-TR

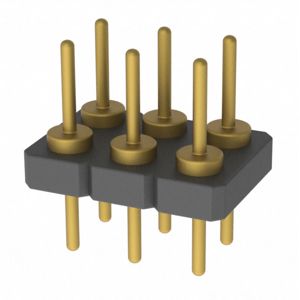

Mill-Max Manufacturing Corp.
