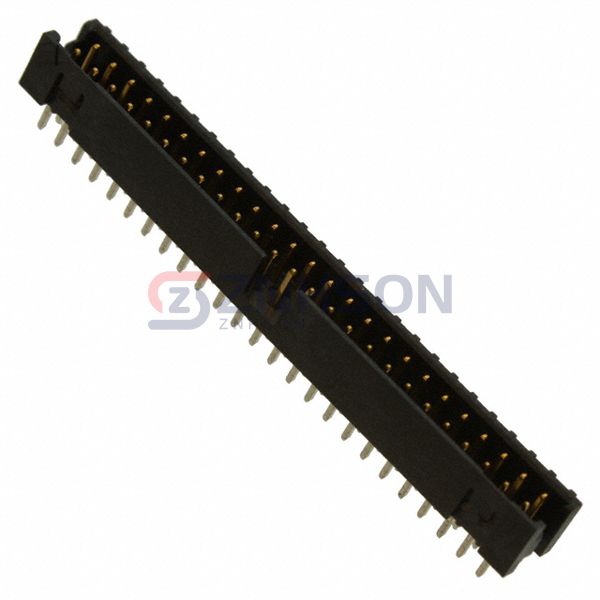

159150-6002
3M
3M
CONN HEADER VERT 50POS 2MM
$6.52
Available to order
Reference Price (USD)
1+
$5.66000
10+
$5.43400
189+
$4.52799
567+
$3.84880
1,134+
$3.28280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 159150-6002 3M Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust 3M for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: 0.112" (2.84mm)
- Overall Contact Length: -
- Insulation Height: 0.210" (5.33mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.25A
- Voltage Rating: 150V
Related Products
Samtec Inc.
TSM-105-01-S-DV-006
Harwin Inc.
M55-7014042R
Samtec Inc.
STMM-105-02-L-D-SM
Samtec Inc.
TSM-108-01-L-DV-006-P-TR
Samtec Inc.
TMM-112-01-G-D-SM-P
Samtec Inc.
TFM-115-02-S-D-WT-P-TR
Preci-Dip
892-80-016-10-001101
Samtec Inc.

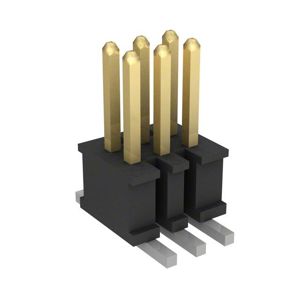

FTSH-103-04-F-DV
Sullins Connector Solutions

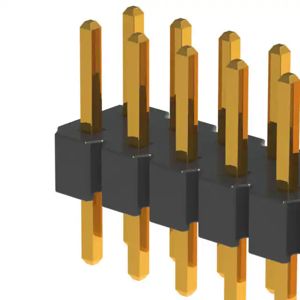

NRPN392PAEN-RC
