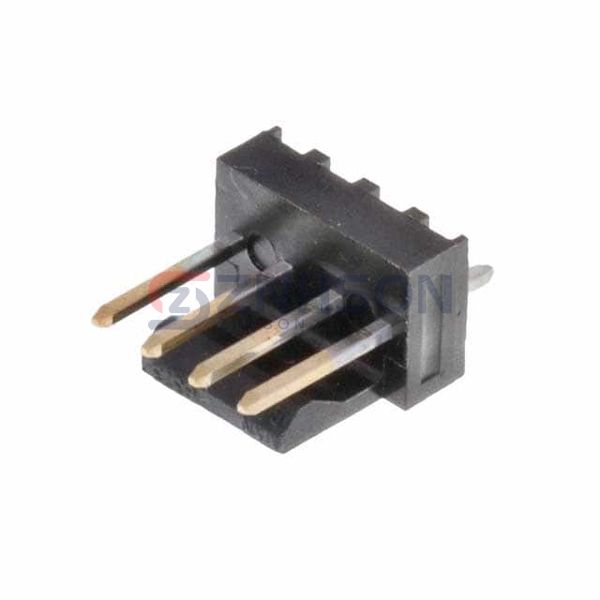

1718564004
Molex
Molex
CONN HEADER VERT 4POS 2.54MM
$1.65
Available to order
Reference Price (USD)
150+
$1.11153
300+
$1.00567
750+
$0.89981
1,050+
$0.79395
1,500+
$0.76749
3,750+
$0.74102
7,500+
$0.70397
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1718564004 Molex Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Molex difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.293" (7.45mm)
- Contact Length - Post: 0.092" (2.34mm)
- Overall Contact Length: 0.510" (12.95mm)
- Insulation Height: 0.322" (8.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Pick and Place
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
