1722981206
Molex
Molex

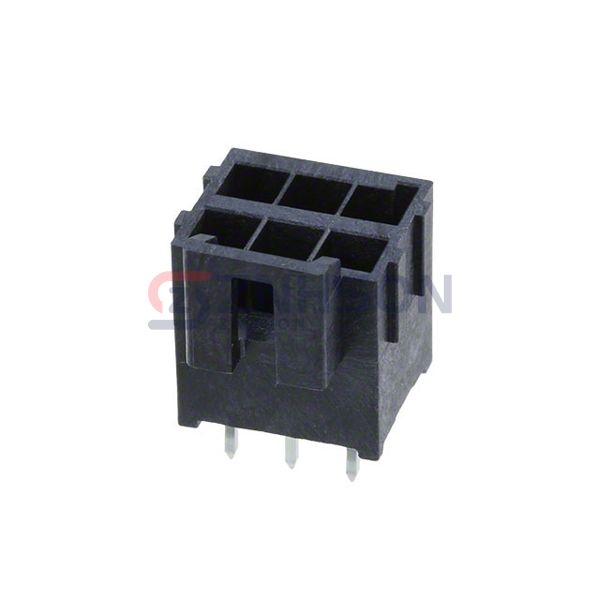

CONN HEADER VERT 6POS 3.5MM
$1.92
Available to order
Reference Price (USD)
1+
$1.51000
10+
$1.36700
100+
$1.17160
500+
$0.97632
1,125+
$0.83685
5,625+
$0.74201
10,125+
$0.72527
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1722981206 Molex Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.138" (3.50mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.181" (4.60mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -40°C ~ 120°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 400V
