1723162114
Molex
Molex

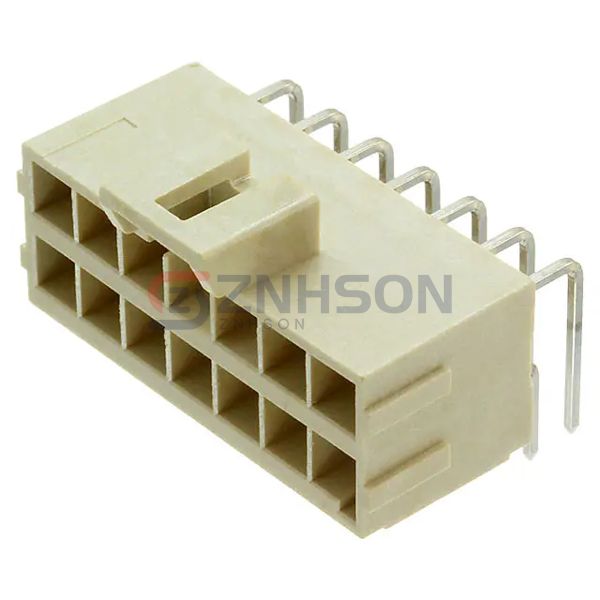

CONN HEADER R/A 14POS 3.5MM
$3.02
Available to order
Reference Price (USD)
1+
$2.98000
10+
$2.85600
100+
$2.38000
500+
$2.02300
1,000+
$1.72550
5,000+
$1.54700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 1723162114 Molex Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.138" (3.50mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.181" (4.60mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.534" (13.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 400V
Related Products
Molex
0901310767
Sullins Connector Solutions
NRPN262PAEN-RC
Samtec Inc.
HTSW-103-08-LM-D-RA
Preci-Dip
399-V3-153-10-009101
CNC Tech
3110-14-003-12-00-TR
TE Connectivity AMP Connectors
640445-3
Amphenol ICC (FCI)
77313-102T26LF
Samtec Inc.
TSM-108-02-LM-DH-P
Sullins Connector Solutions

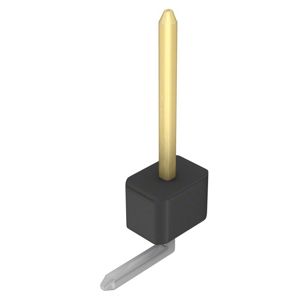

PBC01SGAN
