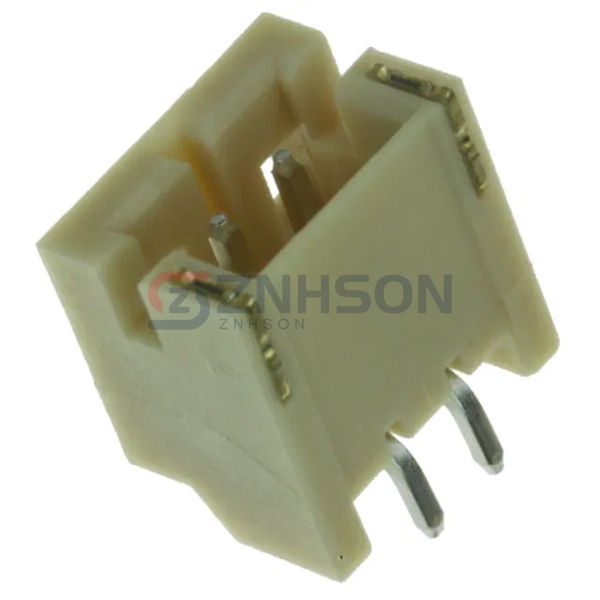

1775469-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER SMD R/A 2POS 2MM
$0.78
Available to order
Reference Price (USD)
600+
$0.47627
1,200+
$0.39933
1,800+
$0.38834
3,000+
$0.36636
6,000+
$0.35537
15,000+
$0.32899
30,000+
$0.32240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1775469-2 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: -
- Contact Length - Mating: 0.139" (3.53mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.217" (5.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 80.0µin (2.03µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Related Products
Preci-Dip
894-70-102-20-001101

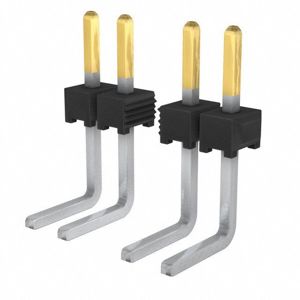

Samtec Inc.
TMM-125-01-F-S-RA

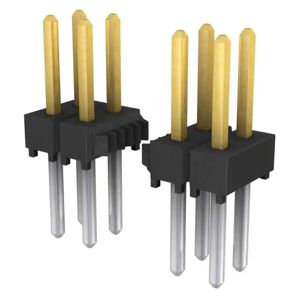

Samtec Inc.
TSW-121-08-L-D

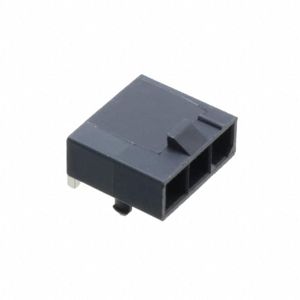

Molex
1726480103

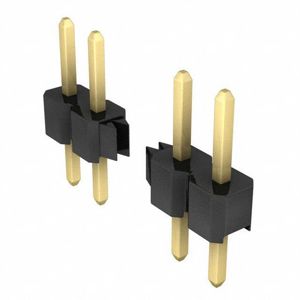

Sullins Connector Solutions
NRPN311PAEN-RC
Samtec Inc.
TSM-105-02-S-DV-P

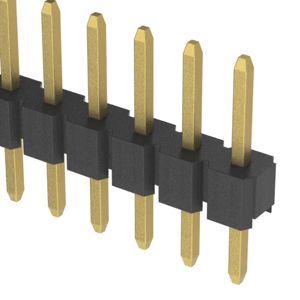

Adam Tech
2PH1-13-UA
Molex
0026481150

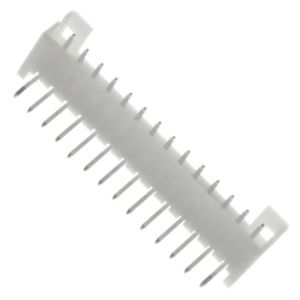

TE Connectivity AMP Connectors
