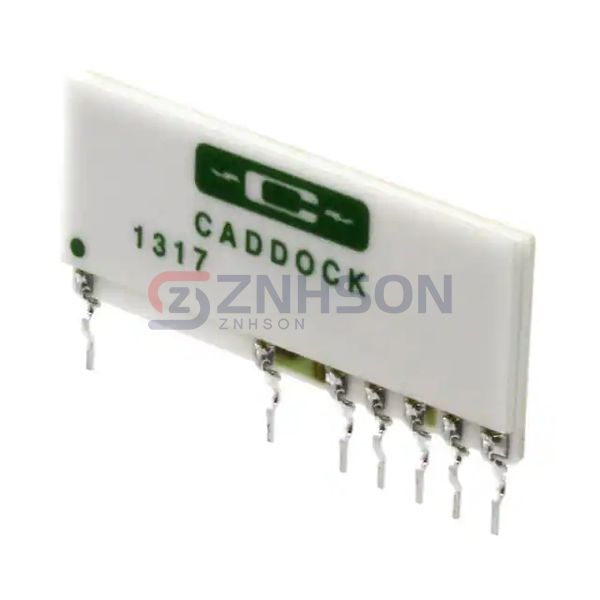

1776-C481
Caddock Electronics Inc.
Caddock Electronics Inc.
RES NETWORK 5 RES MULT OHM 12SIP
$16.78
Available to order
Reference Price (USD)
1+
$19.20000
10+
$17.28000
25+
$15.36000
50+
$14.40000
100+
$13.44000
250+
$12.76800
500+
$12.24000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Caddock Electronics Inc.'s 1776-C481 resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every 1776-C481 unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Decade Resistor
- Resistance (Ohms): 1k, 10k, 101k, 1M, 10M
- Tolerance: ±0.1%
- Number of Resistors: 5
- Resistor Matching Ratio: ±0.05%
- Resistor-Ratio-Drift: ±10ppm/°C
- Number of Pins: 7
- Power Per Element: 62.5mW
- Temperature Coefficient: ±30ppm/°C
- Operating Temperature: -40°C ~ 85°C
- Applications: Voltage Divider (TCR Matched)
- Mounting Type: Through Hole
- Package / Case: 12-SIP, 7 Leads
- Supplier Device Package: -
- Size / Dimension: 1.200" L x 0.110" W (30.48mm x 2.79mm)
- Height - Seated (Max): 0.550" (13.97mm)
Related Products
CTS Resistor Products
766161184GPTR7
Bourns Inc.

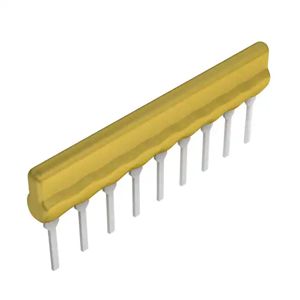

4609X-101-392LF
Bourns Inc.

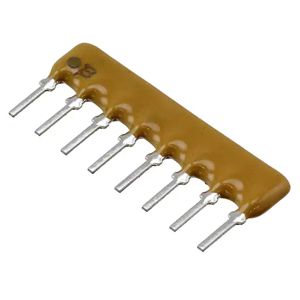

4608X-102-390LF
CTS Resistor Products
766165601AP
YAGEO

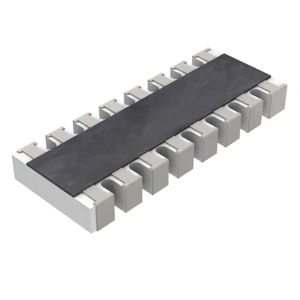

YC248-FR-0728K7L
Bourns Inc.
4609X-101-303LF
YAGEO

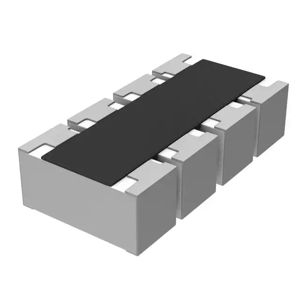

YC124-JR-071K8L
Bourns Inc.

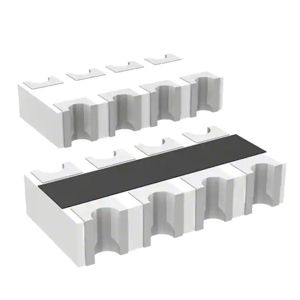

CAT16-1101F4LF
Bourns Inc.

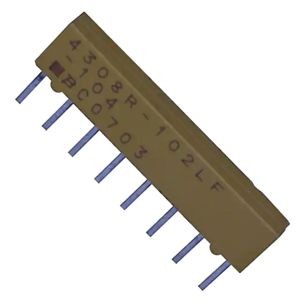

4308R-102-122
