1877285-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

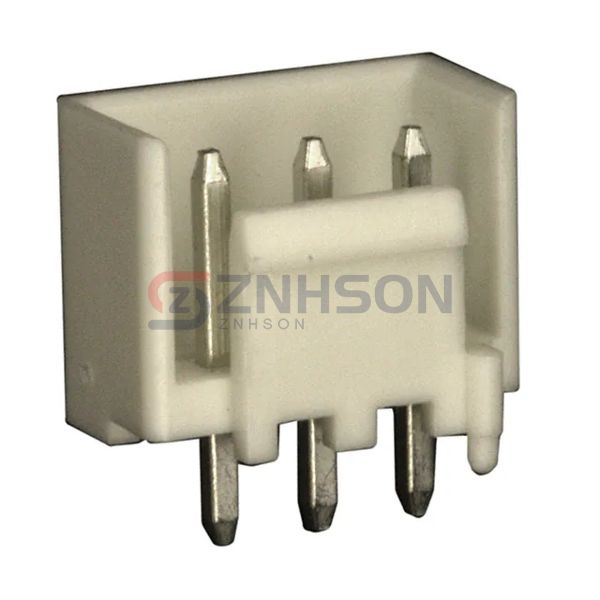

CONN HEADER VERT 3POS 3.96MM
$0.47
Available to order
Reference Price (USD)
1+
$0.43000
10+
$0.40600
100+
$0.29040
500+
$0.25210
1,000+
$0.21374
5,000+
$0.18634
10,000+
$0.17538
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1877285-3 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.306" (7.77mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: 0.567" (14.40mm)
- Insulation Height: 0.472" (12.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): 7.5A
- Voltage Rating: 250VAC
