1946-0-00-15-00-00-03-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

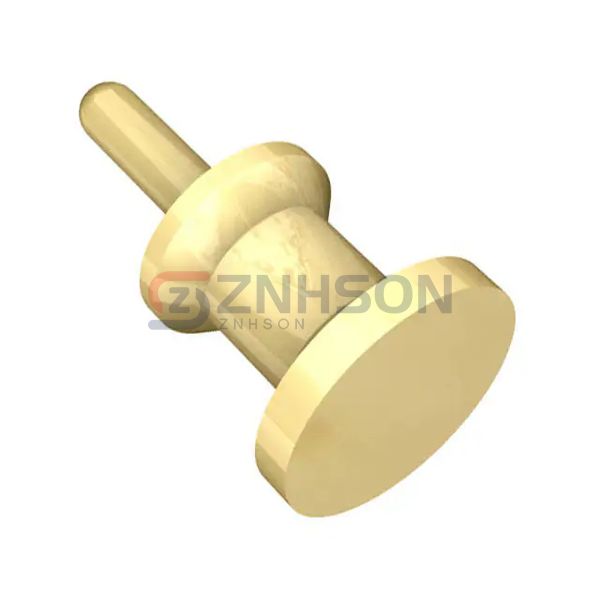

TARGET PIN SOLDERTAIL FLAT FACE
$0.26
Available to order
Reference Price (USD)
1+
$0.21000
10+
$0.20100
25+
$0.17160
50+
$0.15000
100+
$0.13940
250+
$0.12328
500+
$0.11792
1,000+
$0.09648
2,500+
$0.08844
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose 1946-0-00-15-00-00-03-0 Mill-Max Manufacturing Corp. Terminals - PC Pin, Single Post Connectors for dependable and high-performance electrical connections. With attributes such as high-temperature tolerance, low contact resistance, and compact size, these connectors are perfect for space-constrained applications. They are widely used in automotive, aerospace, and renewable energy sectors. Submit your inquiry today, and let us help you find the right connectors for your project.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.030" (0.76mm) Dia
- Pin Size - Below Flange: -
- Length - Above Flange: 0.110" (2.79mm)
- Length - Below Flange: -
- Length - Overall: 0.230" (5.84mm)
- Flange Diameter: 0.125" (3.18mm)
- Mounting Hole Diameter: -
- Mounting Type: Through Hole
- Termination: Solder
- Insulation: Non-Insulated
- Board Thickness: -
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
