1ED020I12BTXUMA1
Infineon Technologies
Infineon Technologies
IC IGBT DVR 1200V 2A DSO16
$5.68
Available to order
Reference Price (USD)
1,000+
$3.06172
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Infineon Technologies 1ED020I12BTXUMA1 Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Active
- Technology: Magnetic Coupling
- Number of Channels: 1
- Voltage - Isolation: 4500Vrms
- Common Mode Transient Immunity (Min): -
- Propagation Delay tpLH / tpHL (Max): -
- Pulse Width Distortion (Max): -
- Rise / Fall Time (Typ): 30ns, 20ns
- Current - Output High, Low: 2A, 2A
- Current - Peak Output: -
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: PG-DSO-16-15
- Approval Agency: -
Related Products
Analog Devices Inc./Maxim Integrated
MAX22702EASA+
Skyworks Solutions Inc.
SI823H9AC-IS
Skyworks Solutions Inc.
SI8234AB-D-IM
Vishay Semiconductor Opto Division

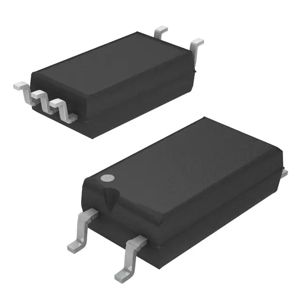

VOL3120-X001T
Skyworks Solutions Inc.

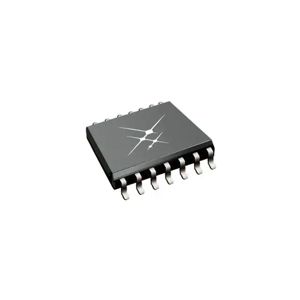

SI823H6CD-IS3
Skyworks Solutions Inc.

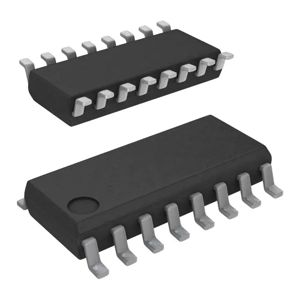

SI8273BBD-IS1R
Skyworks Solutions Inc.

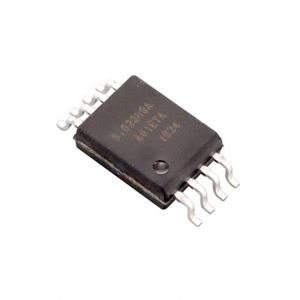

SI823H9CD-IS4R
