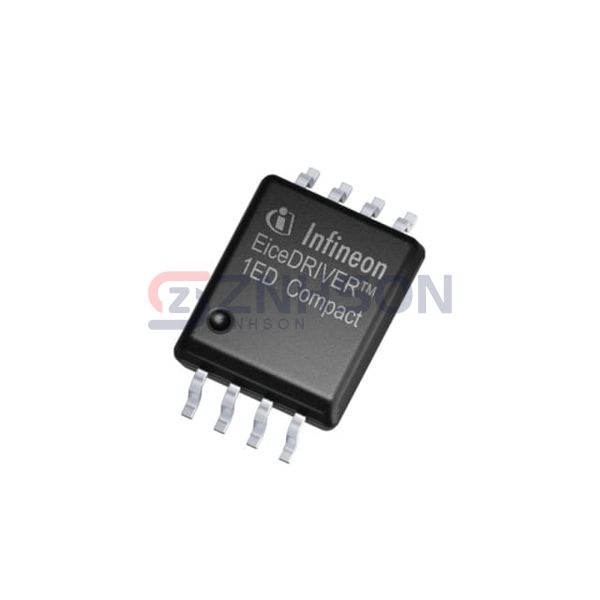

1ED3120MC12HXUMA1
Infineon Technologies
Infineon Technologies
EICEDRIVER X3 COMPACT PG-DSO-8
$3.35
Available to order
Reference Price (USD)
1+
$3.35000
500+
$3.3165
1000+
$3.283
1500+
$3.2495
2000+
$3.216
2500+
$3.1825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your designs with Infineon Technologies 1ED3120MC12HXUMA1 Gate Driver Isolators, offering top-tier isolation and signal integrity. These isolators are equipped with high noise rejection, fast switching speeds, and compliance with international safety standards. Suitable for traction inverters, test equipment, and more, they ensure peak performance. Start your order process contact us today!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 1
- Voltage - Isolation: 8000Vpk
- Common Mode Transient Immunity (Min): 200kV/µs
- Propagation Delay tpLH / tpHL (Max): 280ns, 280ns
- Pulse Width Distortion (Max): -
- Rise / Fall Time (Typ): 30ns, 30ns (Max)
- Current - Output High, Low: 5.5A, 5.5A
- Current - Peak Output: 5.5A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 10V ~ 35V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: PG-DSO-8-66
- Approval Agency: UL, VDE
