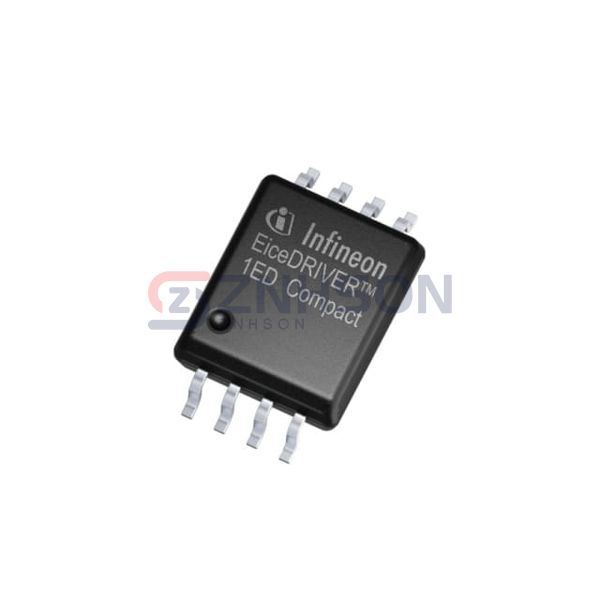

1ED3120MU12HXUMA1
Infineon Technologies
Infineon Technologies
1ED3120MU12HXUMA1
$3.16
Available to order
Reference Price (USD)
1+
$3.16000
500+
$3.1284
1000+
$3.0968
1500+
$3.0652
2000+
$3.0336
2500+
$3.002
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Infineon Technologies 1ED3120MU12HXUMA1 Gate Driver Isolators, engineered for superior isolation and efficiency. Key features include low propagation delay, high common-mode transient immunity, and wide temperature range compatibility. Perfect for renewable energy systems, automation controls, and medical equipment, these isolators deliver unmatched performance. Ready to optimize your design? Request a quote now!
Specifications
- Product Status: Active
- Technology: Magnetic Coupling
- Number of Channels: 1
- Voltage - Isolation: 1200Vrms
- Common Mode Transient Immunity (Min): 200kV/µs
- Propagation Delay tpLH / tpHL (Max): -
- Pulse Width Distortion (Max): -
- Rise / Fall Time (Typ): 15ns, 15ns
- Current - Output High, Low: 5.5A, 5.5A
- Current - Peak Output: 5.5A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 10V ~ 35V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: PG-DSO-8-66
- Approval Agency: UL
