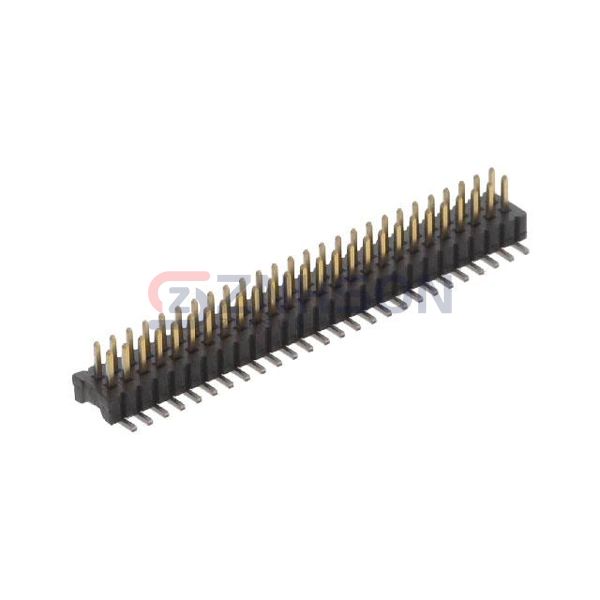

1MM-HU-D26-VS-00-F-TBP
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
SCL 1.0 HDR DRVT USP 052 SMT G1
$4.95
Available to order
Reference Price (USD)
1+
$4.95340
500+
$4.903866
1000+
$4.854332
1500+
$4.804798
2000+
$4.755264
2500+
$4.70573
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 1MM-HU-D26-VS-00-F-TBP TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 52
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.083" (2.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.94µin (0.100µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 30VAC
Related Products
Samtec Inc.
TMM-122-06-S-D-SM-P-TR
Samtec Inc.
HTSW-134-08-TM-S-RA
Samtec Inc.
FTE-184-01-G-DH
Samtec Inc.
TS-112-G-A
TE Connectivity AMP Connectors
826947-5
Samtec Inc.

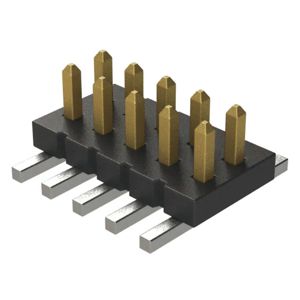

FTS-105-03-F-DV-TR
Samtec Inc.
HTSW-117-14-L-S
Samtec Inc.

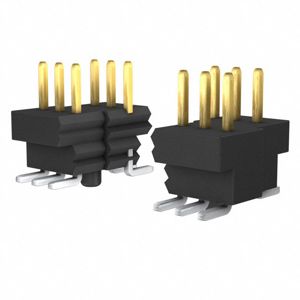

BKT-121-03-LM-V-A-TR
