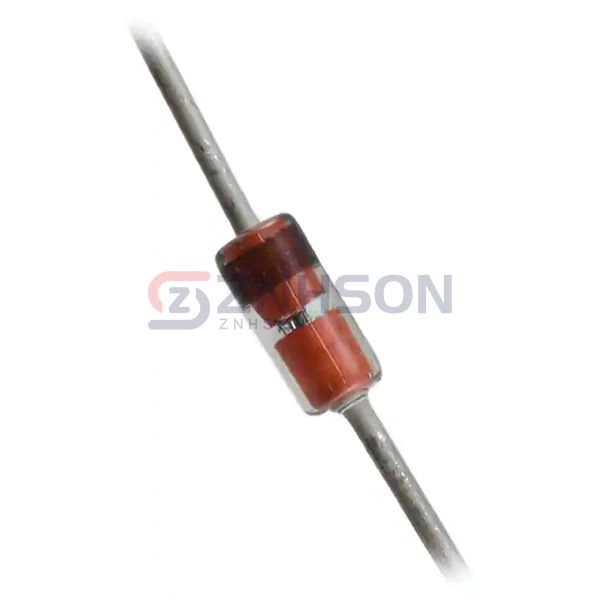

1N4305
Fairchild Semiconductor
Fairchild Semiconductor
RECTIFIER DIODE
$0.02
Available to order
Reference Price (USD)
1+
$0.02000
500+
$0.0198
1000+
$0.0196
1500+
$0.0194
2000+
$0.0192
2500+
$0.019
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your power management systems with 1N4305 Single Rectifier Diodes by Fairchild Semiconductor. These diodes are crafted for optimal performance in AC/DC conversion, ensuring smooth and efficient operation. Ideal for use in power adapters, LED drivers, and motor controls, they feature high current capacity, low VF, and excellent thermal stability. Fairchild Semiconductor's commitment to quality means you get dependable components every time. Interested? Get in touch for pricing and availability!
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75 V
- Current - Average Rectified (Io): 300mA
- Voltage - Forward (Vf) (Max) @ If: 850 mV @ 10 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 100 nA @ 50 V
- Capacitance @ Vr, F: 2pF @ 0V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
- Operating Temperature - Junction: 175°C (Max)
