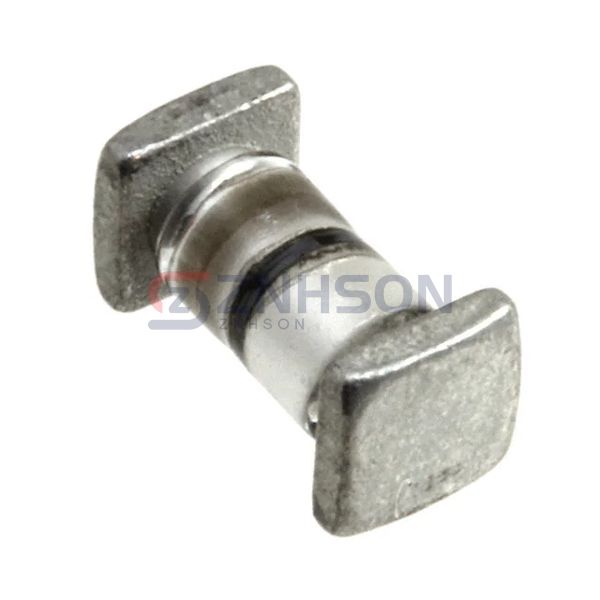

1N5809US/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$8.38
Available to order
Reference Price (USD)
1+
$8.38495
500+
$8.3011005
1000+
$8.217251
1500+
$8.1334015
2000+
$8.049552
2500+
$7.9657025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with Microchip Technology's 1N5809US/TR Single Rectifier Diodes, engineered for precision and durability. Perfect for rectification circuits, these diodes offer fast switching, high efficiency, and minimal power loss. Applications span across automotive systems, renewable energy solutions, and telecommunications. Key features include high temperature tolerance, low leakage current, and superior surge protection. Trust Microchip Technology for components that meet the highest industry standards. Ready to order? Submit your inquiry now!
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 4 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 100 V
- Capacitance @ Vr, F: 60pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, B
- Supplier Device Package: B, SQ-MELF
- Operating Temperature - Junction: -65°C ~ 175°C
Related Products
Taiwan Semiconductor Corporation
HS1FFL
Vishay General Semiconductor - Diodes Division
BYG10K-E3/TR3
Vishay General Semiconductor - Diodes Division
VS-E5PH7512L-N3
SMC Diode Solutions
1N4148WS
Microsemi Corporation

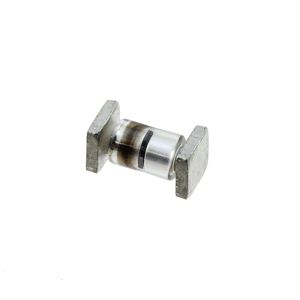

JANTXV1N6622U
Vishay General Semiconductor - Diodes Division

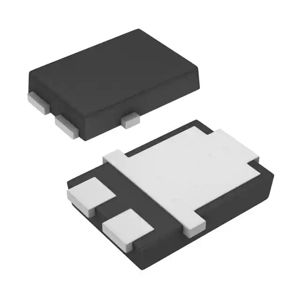

UH4PBCHM3_A/H
Taiwan Semiconductor Corporation

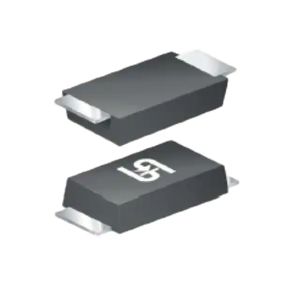

SS16LWHRVG
GeneSiC Semiconductor

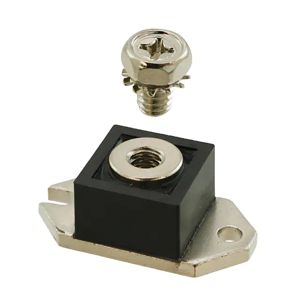

MBRH20080
Rohm Semiconductor

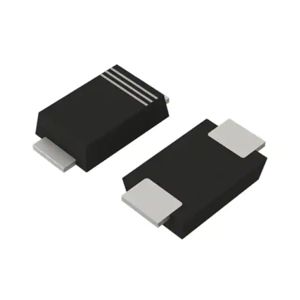

RB055LAM-40TFTR
