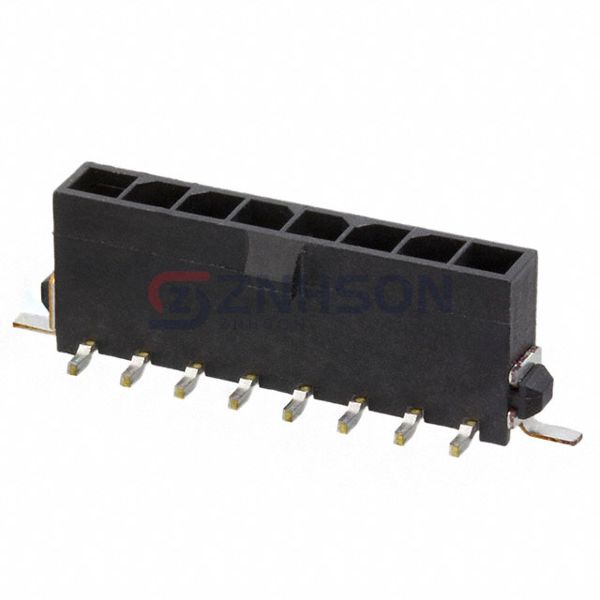

2-1445087-8

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.118" (3.00mm)
• Number of Positions: 8
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Surface Mount
• Termination: Solder
• Fastening Type: Locking Ramp
• Contact Length - Mating: -
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.364" (9.25mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 15.0µin (0.38µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polyamide (PA), Nylon
• Features: Pick and Place, Solder Retention
• Operating Temperature: -40°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): Varies by Wire Gauge
• Voltage Rating: 250V
